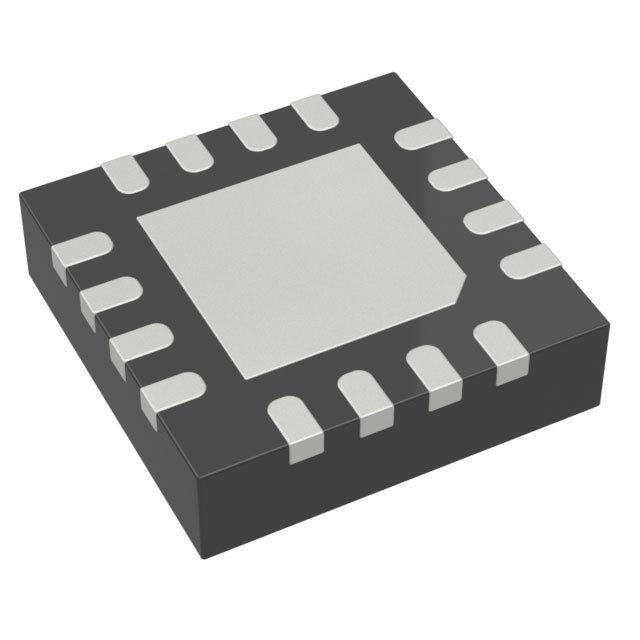

ADP1764ACPZ-1.0 is a low noise, low dropout (LDO) linear regulator. It is designed to operate from a single input supply with an input voltage as low as 1.10 V without the requirement of an external bias supply to increase efficiency and provide up to 4 A of output current (IOUT).

Product Features

4A maximum output current

Low input voltage supply range

VIN = 1.10V to 1.98V, no external bias supply required

Fixed output voltage range (VOUT_FIXED): 0.55V to 1.5V

Adjustable output voltage range (VOUT_ADJ): 0.5V to 1.5V

Ultralow noise: 2μV rms, 100Hz to 100kHz

Noise spectral density: 5nV/√Hz at 10kHz; 4nV/√Hz at 100kHz

Low dropout voltage: 47mV typical at 4A load

Operating supply current: 5mA typical at no load

±1.5% fixed output voltage accuracy over line, load, and temperature

Excellent power supply rejection ratio (PSRR) performance

69dB typical at 10 kHz at 4A load

46dB typical at 100 kHz at 4A load

Excellent load/line transient response

Soft start to reduce inrush current

Optimized for small 22μF ceramic capacitors

Current-limit and thermal overload protection

Power-good indicator

Precision enable

Applications

Field-programmable gate array (FPGA) and digital signal processor (DSP) supplies

Medical and healthcare

Industrial and instrumentation
