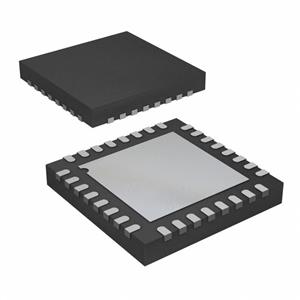

The AD5413BCPZ is a single-channel, 14-bit, voltage- and current-output digital-to-analog converter (DAC) that operates from a supply range of -33 V minimum (on the AVSS pin) to +33 V maximum (on the AVDD1 pin).The CHART pin enables the addressable remote sensor high-speed channel (HART® ) signals to be ac-coupled to the current output. The CHART pin allows an addressable remote sensor high speed channel (HART® ) signal to be AC coupled to the current output. Uses a versatile 4-wire serial peripheral interface (SPI) that operates at clock frequencies up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, Digital Signal Processor (DSP), and microcontroller interface standards.

Product Properties

Number of bits: 14

Number of digital-to-analogue converters: 1

Build-up time: 20µs

Output Type: Voltage or Current - Buffered

Differential Output: None

Data interfaces: DSP, MICROWIRE™, QSPI™, and SPI™

Reference Type: External, Internal

Voltage - Powered, Analogue: 4.5V, 7V ~ 33V

Voltage - Powered, Digital: 1.71V ~ 5.5V

INL/DNL (LSB): -, ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 105°C

Package/Shell: 32-WFQFN Exposed Pad, CSP

Supplier Device Package: 32-LFCSP (5x5)

Mounting Type: Surface Mount

Applications

● Process Control

● Actuator Control

● Channel isolated analogue outputs Programmable Logic Controller (PLC) and Distributed Control System (DCS) applications

● HART network connections
