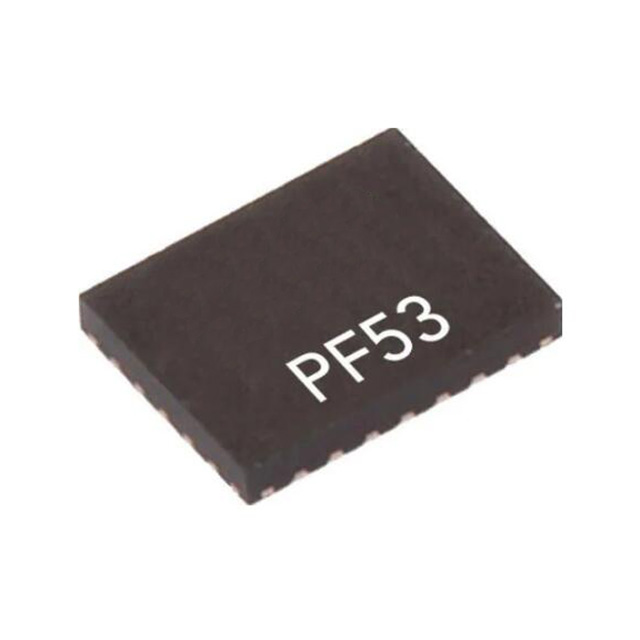

MPF5301AMDA0ES integrate high-performance buck converters, 8 A to power high-end automotive and industrial processors.It can operate as standalone point-of-load regulator ICs or as companion chips to a larger PMIC.

Product Features

High-performance core buck regulator

– 8A, 5 VIN buck regulator - internal FETs (PF5301)

– 2.7V to 5.5V input range

– 0.5V to 1.2V output range

– High efficiency

– ±1 % output accuracy

– 2MHz to 3MHz switching frequency

– Dynamic voltage scaling

– Programmable adaptive-voltage positioning (AVP) (droop)

1.5 μA quiescent current in OFF mode

Fast startup time (< 500 µs)

OTP memory for device configuration

Overtemperature protection

Safety features

– Available in ASIL D, ASIL B, and QM variations

– Watchdog timer

– 1 % OV/UV monitoring

– PGOOD output

– Analog built-in self-test

Rated from -40 ℃ to 150 ℃ Tj

3.5 mm x 4.5 mm WF-QFN package

Applications

Automotive – infotainment, gateway, domain controllers

High-end consumer and industrial
