UCC21530BQDWKQ1 is an isolated dual-channel gate driver with 4A source and 6A sink peak current. It is designed to drive IGBTs, Si MOSFETs, and SiC MOSFETs up to 5MHz with best-in-class propagation delay and pulse-width distortion.

Product Features

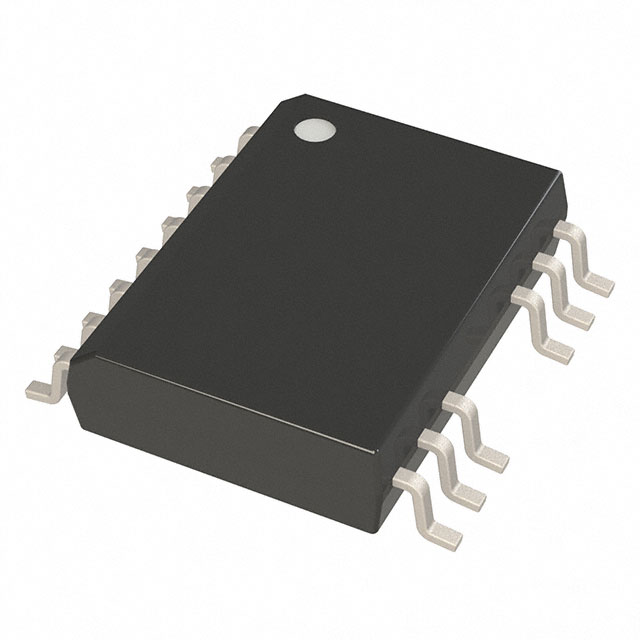

Wide body SOIC-14 (DWK) package

3.3mm spacing between driver channels

Switching parameters:

– 19ns typical propagation delay

– 10ns minimum pulse width

– 5ns maximum delay matching

– 6ns maximum pulse-width distortion

Common-mode transient immunity (CMTI) greater than 100V/ns

Isolation barrier life >40 years

4A peak source, 6A peak sink output

TTL and CMOS compatible inputs

3V to 18V input VCCI range

Up to 25V VDD output drive supply

– 8V and 12V VDD UVLO options

Applications

HEV and BEV battery chargers

Solar string and central inverters

AC-to-DC and DC-to-DC charging piles

AC inverter and servo drive

AC-to-DC and DC-to-DC power delivery

Energy storage systems
