The LM25148RGYR is a 42-volt, ultra-low IQ synchronized buck DC/DC controller for high-current, single-output applications. The controller adopts the peak current mode control structure, which is easy to loop compensation; Fast transient response, excellent load and line supervision. The mode can be set in interleaving (parallel output) with accurate current sharing suitable for high current applications. It can operate at the input voltage down to 3.5V, and the duty cycle is close to 100% as required. The unique EMI reduction feature is called double random spread spectrum (drs).

Product attribute

Output type: transistor driver

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output number: 1

Output phase: 1

Voltage - power supply (Vcc/Vdd) : 3.5V ~ 42V

Frequency - switch: 100kHz ~ 2.2MHz

Duty cycle (Max) : 100%

Synchronous rectifier: Yes

Clock synchronization: Yes

Control characteristics: Current limiting, good power supply, slope, soft start

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

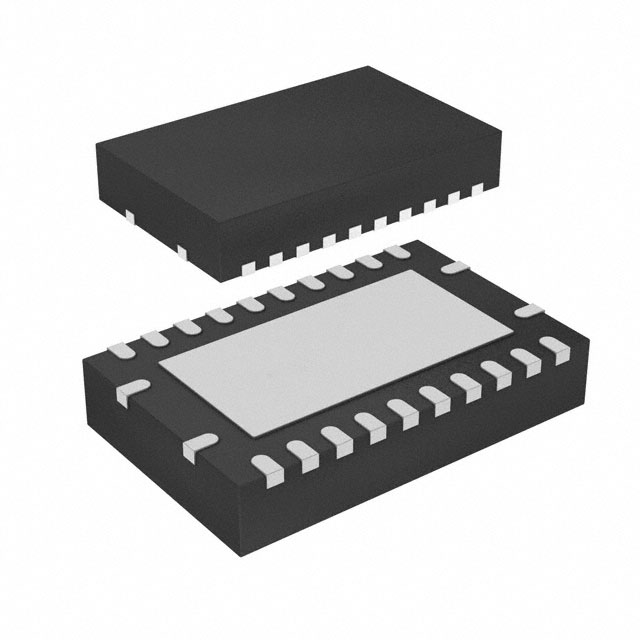

Package/housing: 24-VFQFN bare pad

Supplier Package: 24-VQFN (5.5x3.5)

Apply

● Building Automation

● Industrial Transportation

● Power Transmission

● Test and measurement

● Aerospace and Defense
