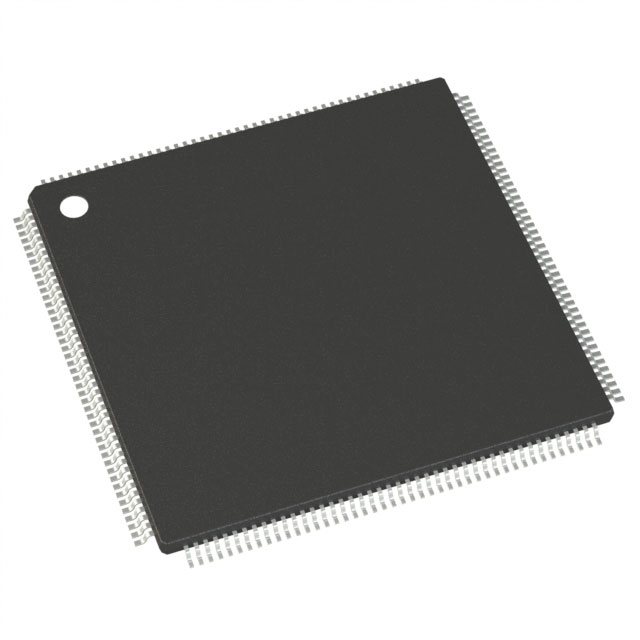

The ATSAMV71Q19B-AAB SAMV71 MCU is based on a high-performance 32-bit ARM® Cortex-M7 processor with a floating-point unit (FPU) that operates at up to 300MHz. The microcontroller has 144 pins and features up to 512KB of flash memory and up to 256KB of multi-port SRAM. On-chip SRAM can be configured as tightly coupled memory (TCM) or system memory. With multi-port access to the SRAM, minimum access latency is ensured.

Specifications

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 300MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 114

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 256K x 8

Voltage - power supply (Vcc/Vdd) : 3V ~ 3.6V

Data converter: A/D 24x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/housing: 144-LQFP

Supplier Device package: 144-LQFP (20x20)
