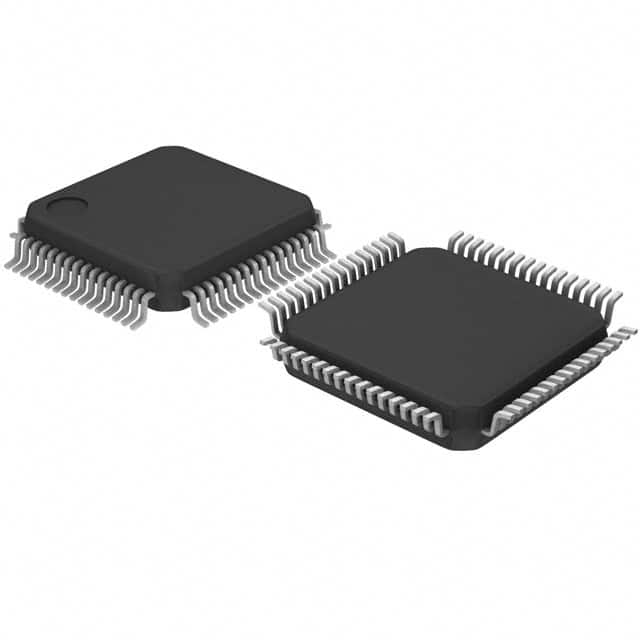

The STM32L496RGT3 STM32L4 MCU is based on a high-performance ARM® Cortex-M4 32-bit RISC core and operates at frequencies up to 80MHz. With 64 pins, 1MB of flash memory and 320KB of RAM, the microcontroller is suitable for Internet of Things (IoT) devices, industrial automation, medical devices, consumer electronics, energy management and security systems.

Specifications

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 80MHz

Connection capability: CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG

Peripheral: Undervoltage detection/reset, DMA, LCD, PWM, WDT

Number of I/ OS: 52

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 320K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

Package/shell: 64-LQFP

Supplier Device package: 64-LQFP (10x10)

Basic product number: STM32L496
