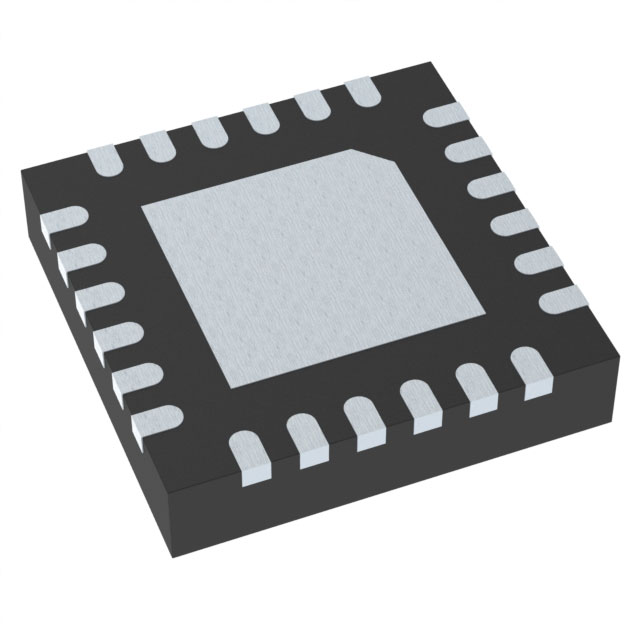

Commodity Model:DRV8770RGER

Trade Name:DRV8770RGER

Data Manual:DRV8770RGER.pdf

Brand:TI

Particular Year:23+

Package:24-VQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV8770RGER
Package
24-VQFN
Describe
Half Bridge Driver DC Motor, General Purpose NMOS, Power MOSFET 24-VQFN (4x4)

Product Description

The DRV8770RGER provides two half-bridge gate drivers, each capable of driving both the high-side and low-side N-channel power MOSFETs. an integrated bootstrap diode and external capacitor generate the correct gate drive voltage for the high-side MOSFET. The integrated bootstrap diode and external capacitor generate the correct gate drive voltage for the high-side MOSFET, while the GVDD drives the gate of the low-side MOSFET. The gate drive architecture supports gate drive currents up to 750 mA source and 1.5 A sink. The high voltage tolerance of the gate drive pins improves system robustness, and the SHx phase pins can withstand large negative transient voltages, while the high-side gate drive supply can support higher positive transient voltages (115 V absolute maximum).


Product Attributes

Interface: Analogue, Logic, PWM

Load Type: Inductive, Capacitive, Resistive

Technology: NMOS, Power MOSFETs

Current - Output/Channel: 1.5A

Current - Peak Output: 1.5A

Voltage - Supply: 5V ~ 20V

Voltage - Load: 5V ~ 20V

Operating Temperature: -40°C ~ 150°C (TJ)

Fail-Safe: Breakdown

Mounting Type: Surface Mount

Package/Shell: 24-VFQFN Exposed Pad

Supplier Device Package: 24-VQFN (4x4)


Applications

● Electric bicycles, electric motorbikes and electric cars

● Cordless gardening and power tools, lawnmowers

● Rechargeable hoovers

● Drones, robots and remote-controlled toys

● Industrial and logistics robots

● Power tools

Associated Products

Model

Brand

Package

Quantity

Describe

UCC27710DR

TI

SOIC-8

20000

0.5A/1.0A, 620V half-bridge gate driver with interlock function

L99MD01XPTR

ST

PowerSSO-36

5000

Octal half-bridge driver with SPI control for automotive application

UCC27712DR

TI

SOIC-8

5000

1.8A/2.8A, 620V Half Bridge Driver with Interlocking Support

L6201PSTR

ST

PowerSO-20

5000

DMOS Full Bridge Driver

BTN7975B

INFINEON

TO263-7

10000

High-performance half-bridge driver chips, part of the NovalithIC™ family

MAX20781BAFC

Maxim

12-FC2QFN

1000

Half Bridge Driver Synchronous Buck Converter 12-FC2QFN (3.25x7.4)

MAX20781EAFC

Maxim

12-FC2QFN

1000

Half Bridge Driver Synchronous Buck Converter 12-FC2QFN (3.25x7.4)

MAX20781HAFC

Maxim

12-FC2QFN

1000

Half Bridge Driver Synchronous Buck Converter 12-FC2QFN (3.25x7.4)

MAX20781AAFC

Maxim

12-FC2QFN

1000

Half Bridge Driver Synchronous Buck Converter 12-FC2QFN (3.25x7.4)

IGI60L5050A1M

INFINEON

TFLGA-27

3000

500mΩ 600V GaN half-bridge with level-shift gate drivers
