The DRV8932PRGER provides four half-bridge drivers for industrial applications. The device can be used to drive up to four solenoid loads, two DC motors, a stepper motor or other loads. stepper motor or other loads. The output stage of each channel consists of N-channel power MOSFETs in a half-bridge configuration. A simple PWM interface allows easy interface with the controller. Powered by a single power supply, they support wide input supply operation, support a wide input supply range of 4.5 V to 33 V, and can deliver up to 1.5 A peak or 1.5 A peak current.

Product Attributes

Output Configuration: Half Bridge (4)

Applications: DC Motors, General Purpose, Solenoids, Stepper Motors

Interfaces: Logic, PWM

Load Type: Inductive, Capacitive, Resistive

Technology: Power MOSFET

On-resistance (typical): 450 mOhm LS + HS

Current - Peak Output: 1.5A

Voltage - Supply: 4.5V ~ 33V

Voltage - Load: 4.5V ~ 33V

Operating Temperature: -40°C ~ 150°C (TJ)

Features: Charge Pump

Fail Safe: Over Current, Over Temperature, UVLO

Mounting Type: Surface Mount

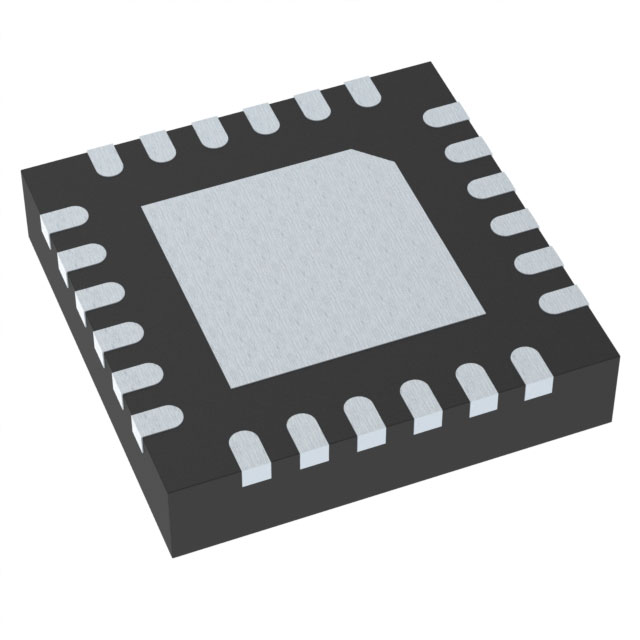

Package/Shell: 24-VFQFN Exposed Pad

Supplier Device Package: 24-VQFN (4x4)

Applications

● Refrigerator dampers and ice machines

● Textile machines

● Office and home automation

● Factory automation and robotics

● Game consoles

● Washing machines, dryers and dishwashers

● General purpose electromagnetic loads
