The ADG1408LYCPZ is a monolithic iCMOS® eight-channel analogue multiplexer. It switches one of the eight inputs to a common output based on the address determined by the 3-bit binary address lines A0, A1, and A2. The kit provides an EN input to enable or disable the kit. When disabled, all channels are turned off. When enabled, each channel has equally good conductivity in both directions and its input signal range extends to the level of the supply voltage.

An external low voltage (VL) supply provides flexibility for lower logic control. the ADG1408LYCPZ is compliant with the 1.2V and 1.8V JEDEC standards.

Features

On-resistance: 4.7 Ω (maximum, 25°C, ±15V dual supply)

On-resistance flatness: 0.5 Ω (typical, 25°C, ±15V dual supply)

Rated supply voltages: ±15V, +12V, and ±5V

VL supply compatible with low logic levels

1.8V JEDEC compliant (JESD8-7A)

1.2V JEDEC compliant (JESD8-12A.01)

Rail-to-rail operation

Open-then-close switching function

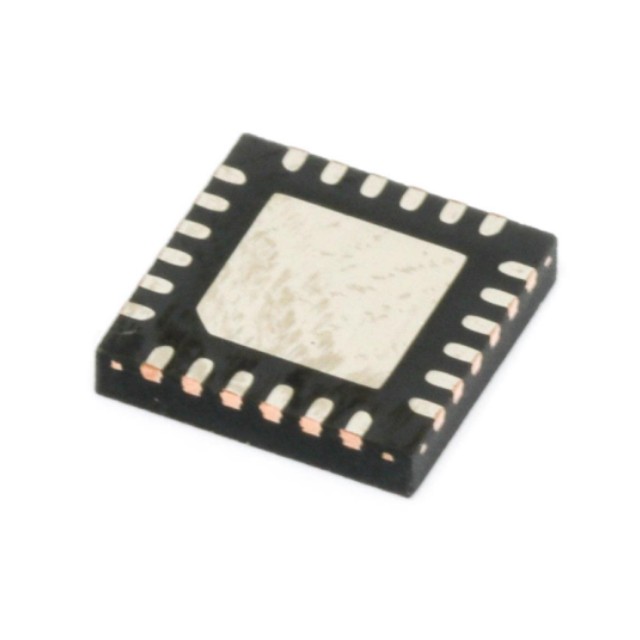

24-pin 4mm × 4mm LFCSP

Applications

FPGA and microcontroller systems

Relay Replacement Solutions

Audio and video routing

Automated test equipment

Data Acquisition Systems

Communication Systems
