The R5F572MNHDBG 32-bit MCU (with EtherCAT Slave Controller) is a high-performance, single-chip MCU solution with large memory capacity suitable for use in industrial devices. The RX72M microcontroller delivers excellent performance, with 1396 CoreMark functionality (measured at 240MHz by EEMBC Benchmarks), as well as application processing and EtherCAT communication capabilities.

Specifications

Core processor: RXv3

Kernel specification: 32-bit single-core

Speed: 240MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG

Peripheral: DMA, LCD, LVD, POR, PWM, WDT

Number of I/ OS: 136

Program storage capacity: 4MB (4M x 8)

Program memory type: Flash

EEPROM capacity: 32K x 8

RAM size: 1M x 8

Voltage - supply (Vcc/Vdd) : 2.7V ~ 3.6V

Data converter: A/D 29x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

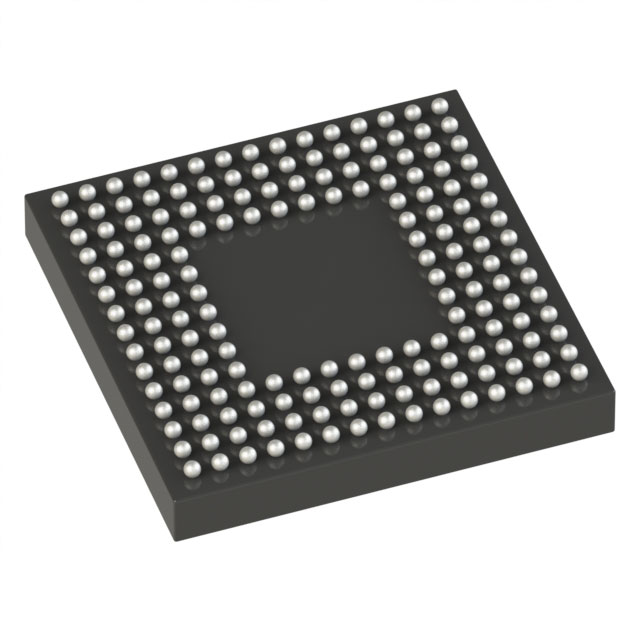

Package/housing: 176-LFBGA

Supplier Package: 176-LFBGA (13x13)

Basic product number: R5F572
