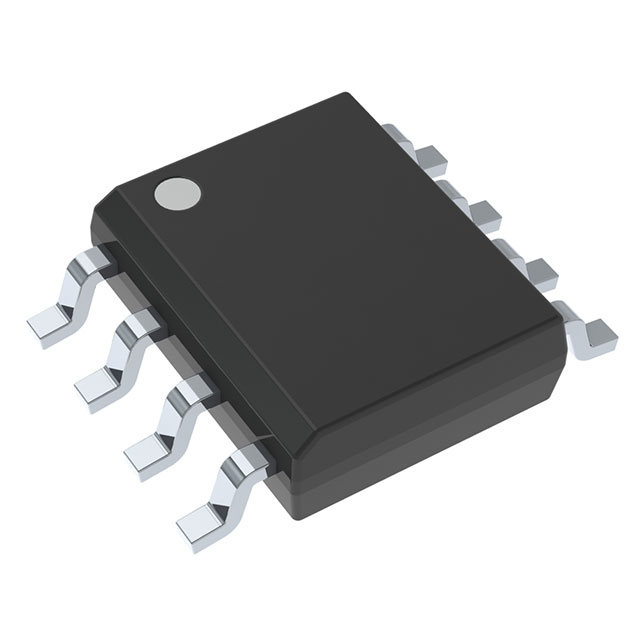

The TMCS1100A2QDRQ1 Hall Effect Current Sensors are galvanically isolated Hall Effect Current Sensors capable of DC or AC current measurements with high accuracy, excellent linearity, and temperature stability. The low-drift, temperature-compensated signal chain has <1% full-scale error over the entire device temperature range. Input current flows through an internal 1.8mΩ conductor, which generates a magnetic field that can be measured by the integrated Hall effect sensor.

Features

- Compliant with AEC-Q100 for automotive applications

- Temperature class 1: - 40 °C to 125 °C, T A

- Provides functional safety

- Documentation to aid in the design of functionally safe systems

- Overall error: ±0.4% typical, ±0.9% maximum, -40°C to 85°C

- Sensitivity error: ±0.4 per cent

- Offset voltage error: 7mA

- Temperature drift: 0.04mA/°C

- Linearity error: 0.05 per cent

- Service life and environmental drift: <±0.5 per cent

- 3kVRMS isolation rating

- Robust 600V lifetime operating voltage

- Bidirectional and unidirectional current sensing

- External reference voltage

- Operating supply voltage range: 3V to 5.5V

- Signal bandwidth: 80kHz

- Sensitivity: 100mV/A

- Safety-related approvals

- UL 1577 Component Certification Scheme

- IEC/CB 62368-1

Applications

- Motor and load control

- Inverter and H-bridge current measurement

- Power factor correction

- Overcurrent protection

- DC and AC power monitoring
