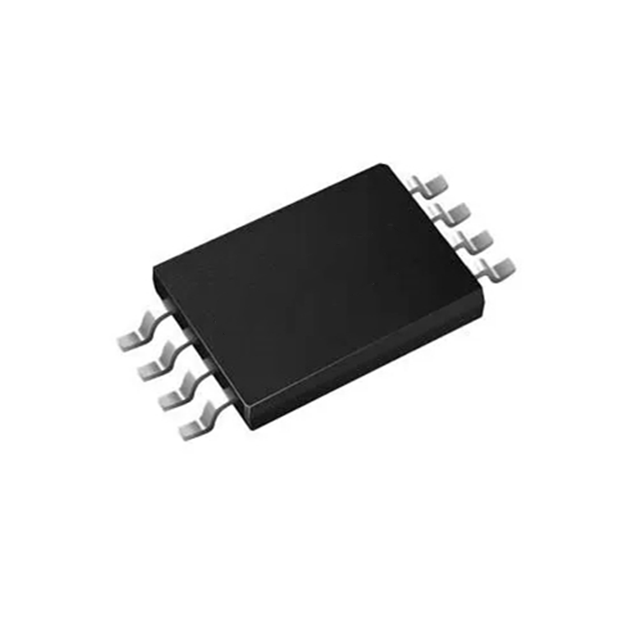

The CT455-H00B5-TS08 is a non-contact current sensor designed to provide high precision and high reliability for a wide range of consumer, enterprise and industrial applications. This sensor utilizes Allegro's patented XtremeSense™ TMR technology and features high bandwidth, low noise, outstanding magnetic sensitivity, low power consumption and compact size, making it highly suitable for modern high-performance environments.

Main specifications

Product: CT455-H00B5-TS08

Used for measuring: DC

Sensor type: Magnetic resistance

Current - detection: -

Number of channels: 1

Output: Analog voltage

Sensitivity: -

Frequency: DC to 1MHz

Linearity: ±0.3%

Accuracy: -

Voltage - Power supply: 4.75V to 5.5V

Response time: 300ns

Current - power supply (maximum value) : 9mA

Operating temperature: -40°C to 125°C

Polarization: Bidirectional

Installation type: Surface mount type

Packaging/Housing: 8-TSSOP

Application field

• Solar/power inverter

• Battery management system

"Industrial equipment"

• Electric utility meters

• Power regulator

• DC-DC converter
