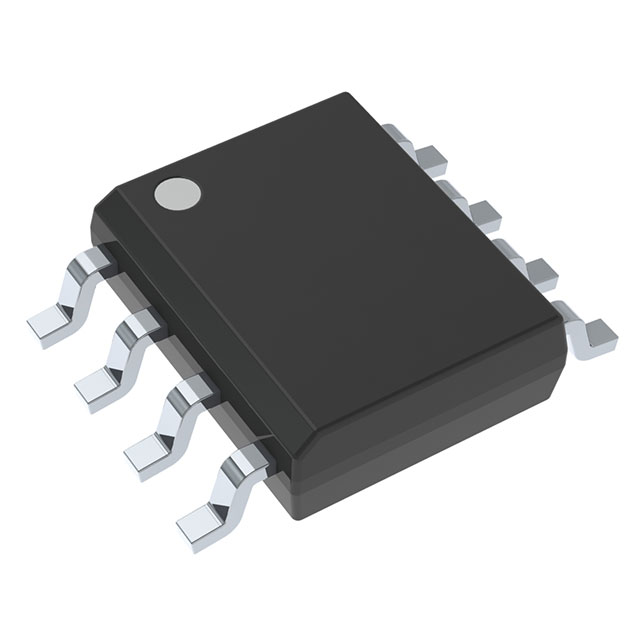

The TMCS1101A1BQDRQ1 is an electrically isolated Hall effect current sensor capable of measuring DC or AC current with high accuracy, excellent linearity and temperature stability. The low-drift, temperature-compensated signal chain enables < 1.5% full-scale error over the temperature range of the device.

Features

- Meets AEC-Q100 for automotive applications

- Temperature Class 1: - 40 °C to 125 °C, T A

- Provides functional safety

- Documentation to aid in functional safety system design

- Overall error: ±0.51% typical, ±1.15% max.

-40°C to 85°C

- Sensitivity Error: ±0.5%

- Offset voltage error: 9mA

- Temperature drift: 0.04mA/°C

- Linearity Error: 0.05%

- Service life and environmental drift: <±0.5%

- 3kVRMS isolation rating

- Robust 600V lifetime operating voltage

- Bidirectional and unidirectional current sensing

- Zero drift internal reference

- Operating supply voltage range: 3V to 5.5V

- Signal bandwidth: 80kHz

- Sensitivity: 50mV/A

- Safety-related certifications

- UL 1577 Component Certification Program

- IEC/CB 62368-1

Applications

- Motor and load control

- Inverter and H-bridge current measurement

- Power factor correction

- Overcurrent protection

- DC and AC power monitoring
