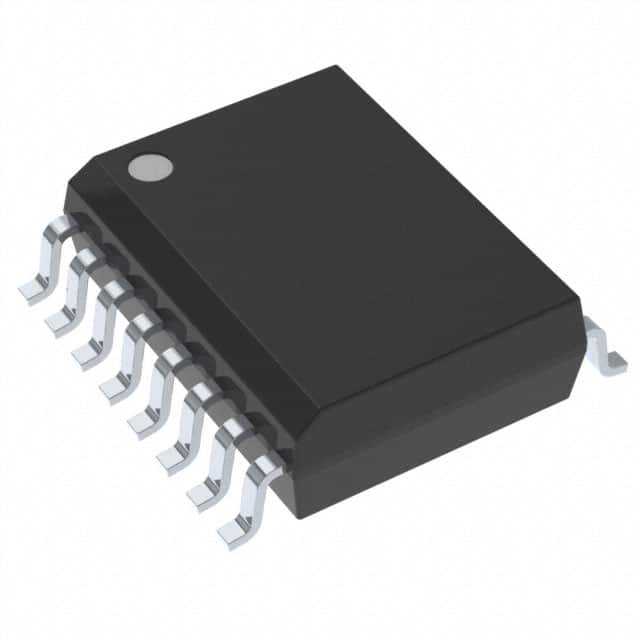

The UCC21520AQDWRQ1 is an isolated dual-channel gate driver with 4A peak pull current and 6A peak fill current. The device is designed to drive power MOSFETs, IGBTs, and SiC MOSFETs up to 5MHz with best-in-class propagation delay and pulse width distortion. The device is suitable for HEV and BEV battery chargers, isolated converters in DC/DC and AC/DC power supplies, motor drives and DC-AC solar inverters and uninterruptible power supplies (UPS).

Specifications

Technology: capacitive coupling

Number of channels: 2

Voltage - isolation: 5700Vrms

Common-mode transient immunity (min) : 100V/ns

Propagation delay tpLH/tpHL (maximum) : 30ns, 30ns

Pulse width distortion (Max) : 6ns

Rise/fall time (typical value) : 6ns, 7ns

Current - Output high, low: 4A, 6A

Current - Peak output: -

Voltage - Forward (Vf) (typical value) : -

Voltage output power supply: 6.5V ~ 25V

Class: Automobile class

Qualification: AEC-Q100

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 16-SOIC (0.295", 7.50mm wide)

Supplier device package: 16-SOIC

Certification body: CQC, CSA, UR, VDE

Basic product number: UCC21520
