The UCC20225AQNPLRQ1 is a single input, dual output isolated gate driver with 4 A source and 6 A sink current. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and impulse response, best-in-class propagation delay and pulse width distortion. Isolated from both output drivers by a 2.5 kVRMS barrier, it has a minimum 100-V/ns common mode transient immunity (CMTI). Internal functional isolation between the two output-side drivers allows operating voltages up to 700-VDC.

Product Attributes

Technology: Capacitively coupled

Number of Channels: 2

Voltage - Isolation: 2500Vrms

Common mode transient immunity (min): 100V/ns

Propagation Delay tpLH / tpHL (max): 30ns, 30ns

Pulse Width Distortion (max): 6ns

Rise / fall time (typical): 6ns, 7ns

Current - Output High, Low: 4A, 6A

Current - Peak Output: 4A, 6A

Voltage - Output Supply: 6.5V ~ 25V

Rating: Automotive Grade

Qualification: AEC-Q100

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

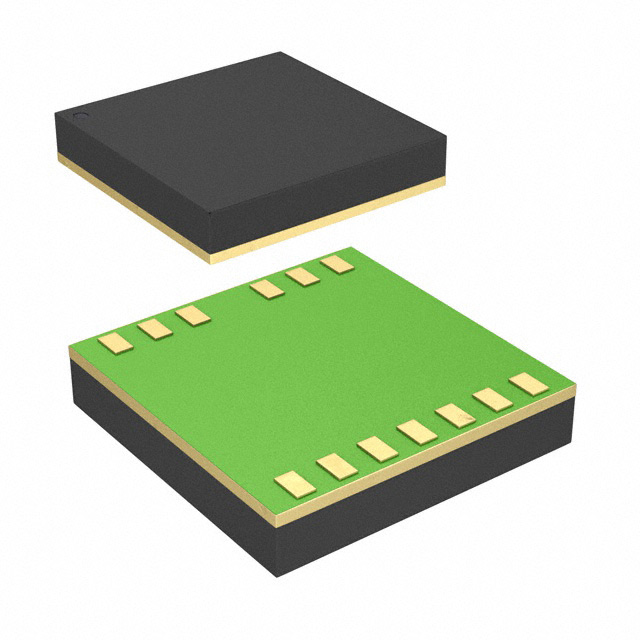

Package/Housing: 13-VFLGA

Supplier Device Package: 13-VLGA (5x5)

Certification Body: CQC, UL, VDE

Applications

● Automotive external audio amplifiers

● Automotive 48 V systems
