The LTC3895EFE is a high performance step-down switching regulator DC/DC controller with a synchronous power MOSFET stage. With input voltages up to 140V, the constant frequency current mode architecture enables phase locking frequencies up to 850kHz. The gate drive voltage is programmable from 5V to 10V to maximise efficiency using either logic-level or standard-level FETs. The integrated switch in the top gate driver eliminates the need for an external bootstrap diode. Internal charge pumps Internal charge pumps enable 100% duty cycle operation.

Product Attributes

Output Type: Transistor Driver

Function: Buck

Output Configuration: Positive

Topology: Buck

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 4V ~ 140V

Frequency - Switching: 50kHz ~ 900kHz

Duty Cycle (Max): 100%

Synchronous Rectifier: Yes

Clock Synchronisation: No

Control Characteristics: Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

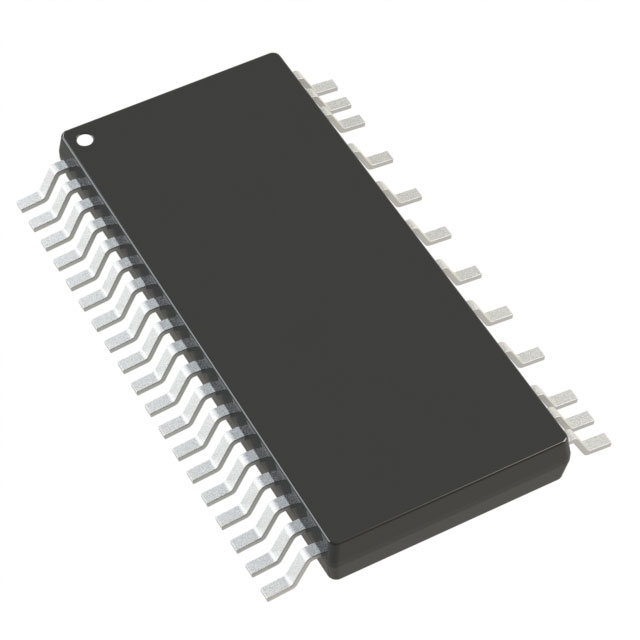

Package/Shell: 38-TFSOP (0.173", 4.40mm Width), 31 Leads, Exposed Pad

Supplier Device Package: 38-TSSOP-EP

Applications

● Automotive and industrial power systems

● High voltage battery power systems

● Telecommunications power systems
