The LTC7804EUD is a high performance synchronous step-up DC/DC switching regulator controller that drives a full N-channel power MOSFET stage. Synchronous rectification improves efficiency, reduces power loss, and lowers thermal requirements. The constant frequency current mode architecture enables phase-locked switching frequencies up to 3MHz. A wide input supply range of 4.5V to 40V is available. Operates from input supplies as low as 1V after startup when biased from the boost converter output.

Product Attributes

Output Type: Transistor Driver

Function: Boost

Output Configuration: Positive

Topology: Boost

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 4.5V ~ 40V

Frequency - Switching: 100kHz ~ 3MHz

Duty Cycle (Max): 100%

Synchronous Rectifier: Yes

Clock Synchronisation: No

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

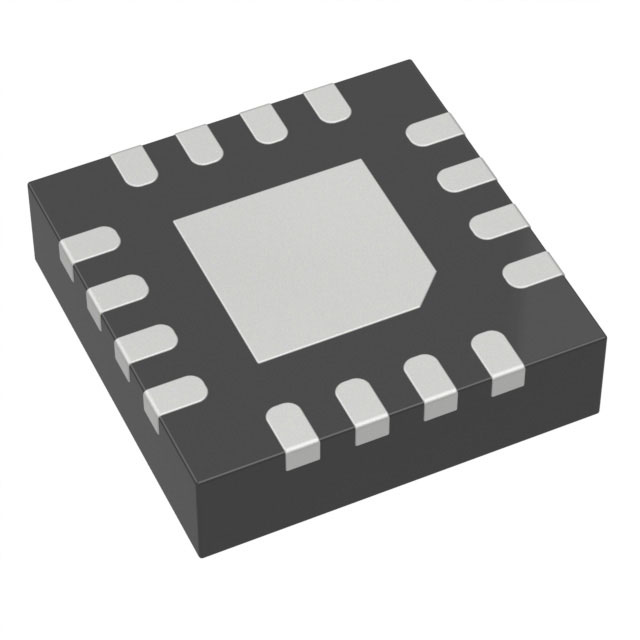

Package/Housing: 16-WFQFN Exposed Pad

Supplier Device Package: 16-QFN (3x3)

Applications

● Automotive and Transport

● Industrial

● Military/Aerospace= 重新 想

● Telecommunications
