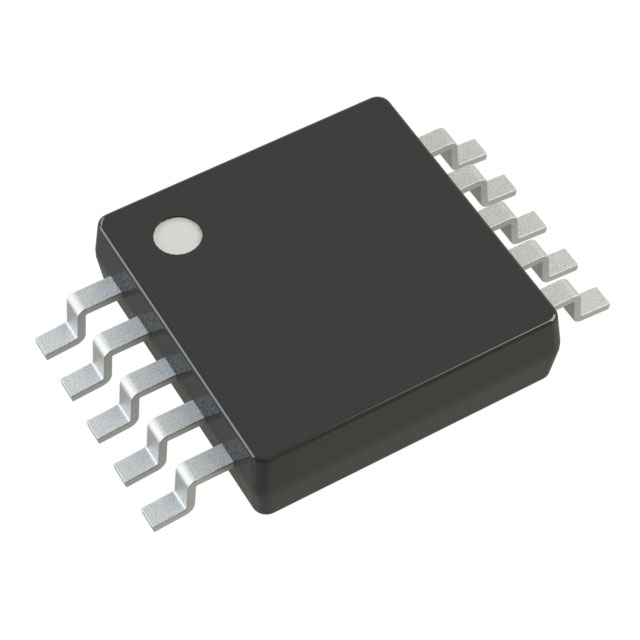

MCP33131D-10-E/MS is 1 Msps/500 kSPS 16-Bit Differential Input SAR Analog to Digital Converters (ADC).

Features

• 16-Bit Resolution with No Missing Codes

• No Latency Output

• Wide Operating Voltage Range:

- Analog Supply Voltage (AVDD): 1.8V

- Digital Input/Output Interface Voltage (DVIO): 1.7V - 5.5V

- External Reference (VREF): 2.5V - 5.1V

• Differential Input Operation

- Input Full-Scale Range: -VREF to +VREF

• Ultra Low Current Consumption (typical):

- During Input Acquisition (Standby): ~ 0.8 µA

• SPI-Compatible Serial Communication:

- SCLK Clock Rate: up to 100 MHz

• ADC Self-Calibration for Offset, Gain, and Linearity Errors:

- During Power-Up (automatic)

- On-Demand via user’s command during normal operation

Typical Applications

• High-Precision Data Acquisition

• Medical Instruments

• Test Equipment

• Electric Vehicle Battery Management Systems

• Motor Control Applications

• Switch-Mode Power Supply Applications

• Battery-Powered Equipment
