Trade Name:MCP3426A4T-E/SN
Data Manual:MCP3426A4T-E/SN.pdf
Brand:Microchip
Particular Year:23+

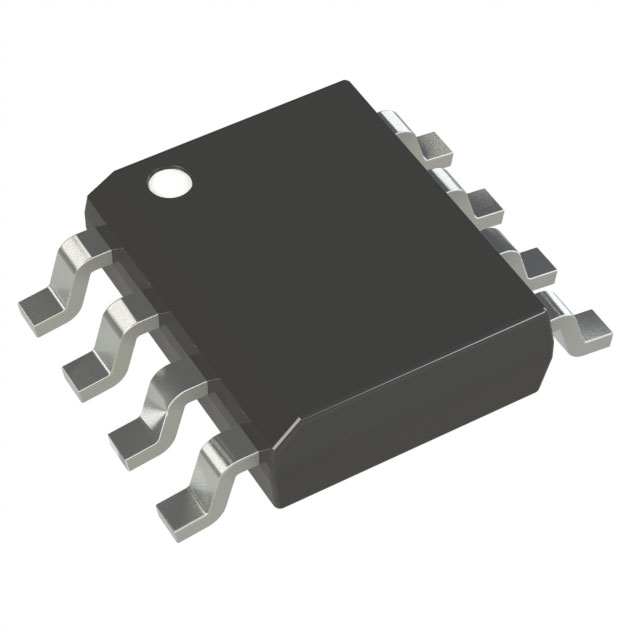

Package:8-SOIC
Delivery Date:New and Original
Stock: 1000pcs
MCP3426A4T-E/SN is the low noise and high accuracy 16 Bit Delta-Sigma Analog-to-Digital (ΔΣ A/D) Converter of the MCP342X series. It can convert analog inputs to digital codes with up to 16 bits of resolution.
Product Features
16-bit ΔΣ ADC with Differential Inputs: 2 channels
On-Board Programmable Gain Amplifier (PGA): Gains of 1,2, 4 or 8
INL: 10 ppm of Full Scale Range
One-Shot or Continuous Conversion Options
Self Calibration of Internal Offset and Gain per Each Conversion
On-Board Voltage Reference (VREF):
- Accuracy: 2.048V ± 0.05%
- Drift: 15 ppm/°C
On-Board Oscillator
I2C™ Interface: Standard, Fast and High Speed Modes
Single Supply Operation: 2.7V to 5.5V
Extended Temperature Range: -40°C to +125°C
One-Shot or Continuous Conversion Options
Low Current Consumption (VDD= 3V) - Continuous Conversion: 135 µA typical
Typical Applications
Portable Instrumentation and Consumer Goods
Temperature Sensing with RTD, Thermistor, and Thermocouple
Bridge Sensing for Pressure, Strain, and Force
Weigh Scales and Battery Fuel Gauges
Factory Automation Equipment
