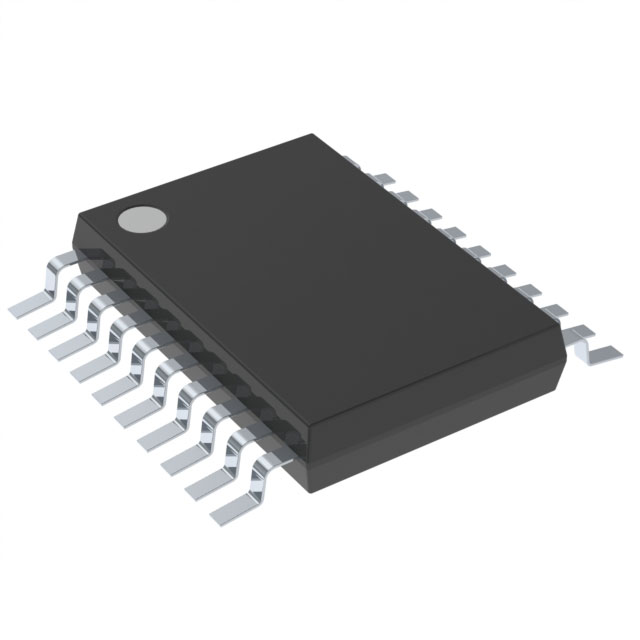

MCP3562RT-E/ST is 24-bit,Delta-Sigma Analog-to-Digital Converters with programmable data rate of up to 153.6 ksps.

Features

One/Two/Four Differential or Two/Four/Eight Single -Ended Input Channels

24-Bit Resolution

Programmable Data Rate: Up to 153.6 ksps

Programmable Gain: 0.33x to 64x

106.7 dB SINAD, -116 dBc THD, 120 dBc SFDR (Gain = 1x, 4800 SPS)

Low-Temperature Drif:

Offset error drift: 4/Gain nV/°C (AZ_ MUX= 1)

Gain error drift: 0.5 ppm/°C (Gain = 1x)

Low Noise: 90 nVRMS (Gain = 16x,12.5 SPS)

RMS ENOB: Up to 23.3 Bits

Wide Input Voltage Range: 0V to AVoo

Selectable Internal 2.4V Voltage Reference with 15 ppm/°C drift

Differential Voltage Reference Inputs

Internal Oscillator or External Clock Selection

Ultra-Low Full Shutdown Current Consumption (<2.4 μA)

Internal Temperature Sensor

Burnout Current Sources for Sensor Open/Short Detection

24-Bit Digital Offset and Gain Error Calbration Registers

Internal Conversions Sequencer (SCAN mode) for Automatic Multiplexing

Dedicated IRQ Pin for Easy Synchronization

16-bit CRC for secure SPI communications

16-bit CRC and IRQ for securing configuration

Register map lock with 8-bit secure key

Monitor controls for system diagnostics

Applications

Precision sensor transducers and transmitters:pressure, strain, flow and force measurement

Factory automation and process controls

Portable instrumentation

Temperature measurements
