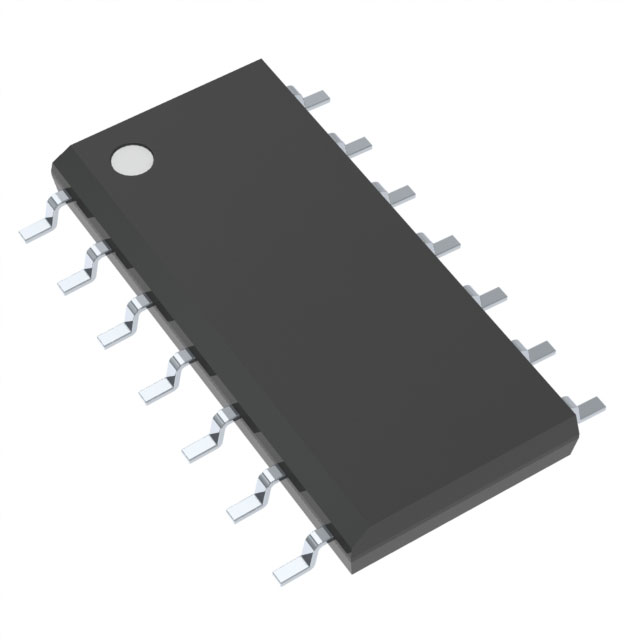

The OPA4991QDRQ1 (OPA4991-Q1) is a family of high-voltage (40V) general-purpose operational amplifiers for automotive applications. These devices offer excellent DC accuracy and AC performance, including rail-to-rail input or output, low offset voltage (±125µV typical), low temperature drift (±0.3µV/°C typical), low noise (10.8nV/√ Hz and 1.8µV PP), and 4.5MHz bandwidth.

Features

- Complies with AEC-Q100 for automotive applications

- Temperature Class 1: -40°C to +125°C, TA

- Device HBM ESD Classification 2A

- Device CDM ESD Classification Level C6

- Low misalignment voltage: ±125µV

- Low offset voltage drift: ±0.3µV/°C

- Low noise: 10.8nV/√Hz at 1 kHz

- High common mode rejection: 130dB

- Low bias current: ±10pA

- Rail-to-rail inputs and outputs

- Wide bandwidth: 4.5 MHz GBW

- High voltage swing rate: 21V/µs

- High capacitive load drive: 1nF

- Supports inputs for multiplexers/comparators

- Amplifier operates with differential inputs up to the supply rails

- Amplifiers can be used in open loop or as comparators

- Low quiescent current: 560µA per amplifier

- Wide supply voltage range: ±1.35V to ±20V, 2.7V to 40V

- Strong EMIRR performance: EMI/RFI filters on input and power pins

Applications

- Optimized for AEC-Q100 Level 1 applications

- Infotainment systems and instrument clusters

- Passive safety

- Body electronics and lighting

- Hybrid/electric vehicle inverters and motor control

- On-board chargers (OBC) and wireless chargers

- Powertrain current sensors

- Advanced Driver Assistance Systems (ADAS)

- High Side Current Sensing
