The OPA2828IDGNR JFET operational amplifier is the next generation of the OPA627 and OPA827 operational amplifiers, combining high speed with high DC precision and high AC performance. The op amps achieve low offset voltage, low temperature drift over the entire temperature range, low bias current, and low noise (only 60nVRMS 0.1Hz to 10Hz.) The OPA828 operates over a wide supply voltage range of ±4V to ±18V, with a supply current of only 5.5mA per channel (typical).

Features

- Low input voltage noise density: 4nV/√Hz at 1 kHz

- Input voltage noise: 0.1Hz to 10Hz: 60nVRMS

- Low input bias current:

- 0.1pA (DGN)

- 1pA (D)

- Input Offset Voltage:

- 25μV (DGN)

- 50μV (D)

- Input temperature drift:

- 0.2μV/°C (DGN)

- 0.45μV/°C (D)

- Multiplexer-friendly inputs

- Gain bandwidth: 45MHz

- Slew rate: 150 V/μs

- 14-bit stabilization time: 120ns

- Overload power limiter

- Wide supply voltage range: ±4V to ±18V

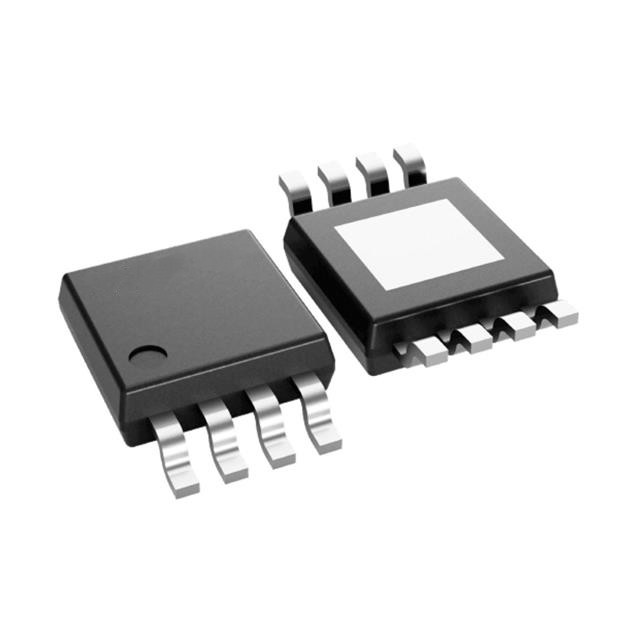

- DGN package: 8-pin HVSSOP

Applications

- Data acquisition (DAQ)

- Optical modules

- Laboratory and field instrumentation

- Hybrid modules (AI, AO, DI, DO)

- Ultrasound scanners
