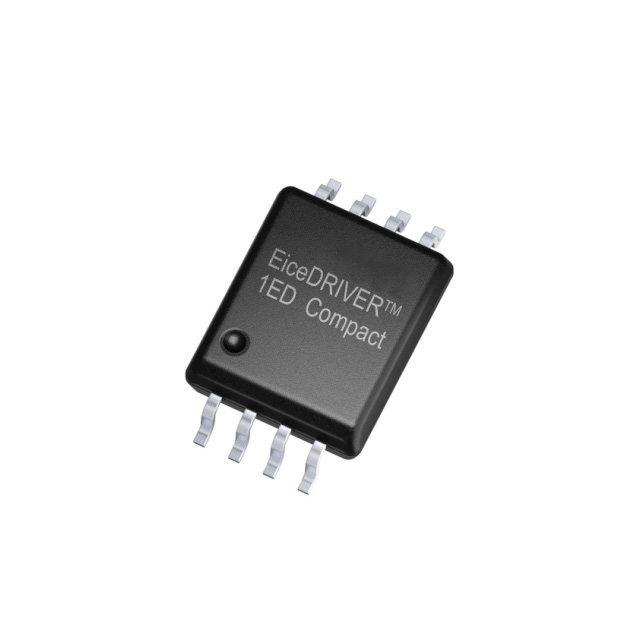

1ED3124MU12H is galvanically isolated single channel gate driver ICs for IGBT, MOSFET and SiC MOSFET in PG-DSO-8 package. It provide a typical output current of up to 14.0 A on separate source and sink pins or a typical output current of 10.0 A with an additional 3.0 A active Miller clamp.

Feature list

• Single channel isolated gate driver

• For use with 600 V/650 V/1200 V/1700 V/2300 V IGBTs, Si and SiC MOSFETs

• Up to 14.0 A typical peak output current

• 40 V absolute maximum output supply voltage

• High common-mode transient immunity CMTI > 200 kV/µs

• Separate source and sink outputs or active Miller clamp with active shutdown and short circuit clamping

• Galvanically isolated coreless transformer gate driver

• 3.3 V and 5 V input supply voltage

• Suitable for operation at high ambient temperature and in fast switching applications

• UL 1577 certification VISO = 5.7 kV (rms) for 1 min (File E311313)

Potential applications

• AC and brushless DC motor drives

• High voltage DC-DC converter and DC-AC inverter

• Induction heating resonant application

• UPS-systems

• Commercial air-conditioning (CAC)

• Server and telecom switched mode power supplies (SMPS)

• Solar inverters, e.g. for 1500 V (DC) systems
