The LTC4125EUFD is a simple and high-performance monolithic full-bridge resonant driver capable of wirelessly transmitting more than 5W of power to a properly tuned receiver. The device controls the current in the series transmitting coil in an LC network to create a simple, safe and versatile wireless power transmitter. Its drive frequency is automatically adjusted to match the resonant frequency of the LC network. This automatic resonant switching allows the device to deliver maximum power to the tuned receiver from a low voltage input supply (3 V to 5.5 V). To optimise system efficiency, a periodic transmit power search is used and the transmitted power is adjusted to the receiver load requirements.

FEATURES

● Monolithic 5W wireless power transmitter

● AutoResonantTM switching frequency adjusts for resonant capacitance and transmitter coil inductance* n Transmit power automatically adjusts load to receiver

● Input voltage range: 3V to 5.5V

● Integrated 100mΩ full-bridge switch

● Multiple foreign object detection methods

● Programmable average input current limiting and monitoring

● NTC input for system/component temperature

● Wide operating switching frequency range: 50kHz to 250kHz

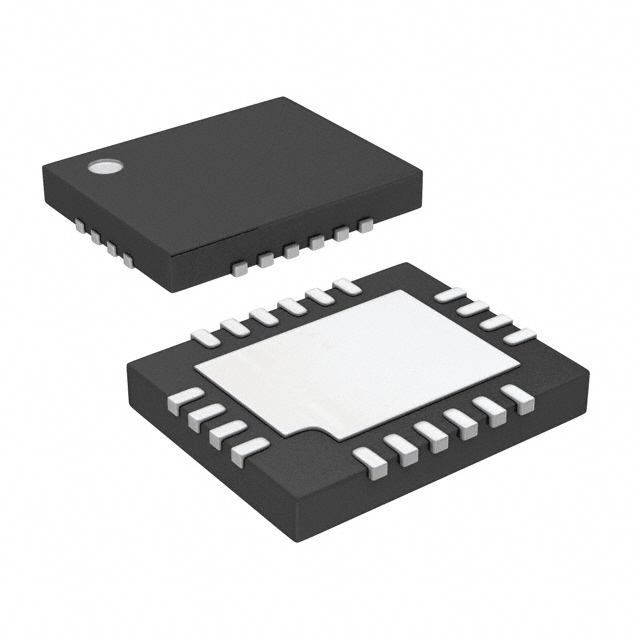

● Thermally enhanced 4mm × 5mm QFN 20-lead package

Applications

● Hermetically and/or electrically insulated devices

● Military sensors and devices

● Medical devices

● Industrial handheld devices
