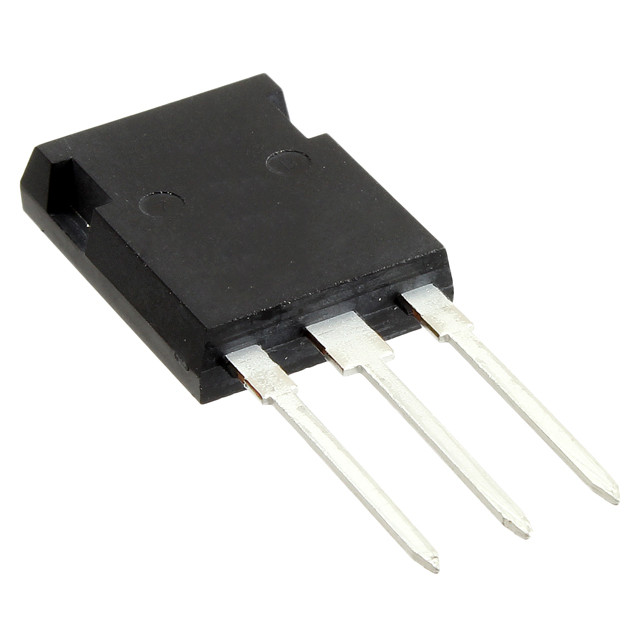

Trade Name:APT25GT120BRG
Data Manual:APT25GT120BRG.pdf
Brand:Microchip
Particular Year:23+
Package:TO-247-3
Delivery Date:New original
Stock: 1000pcs
APT25GT120BRG Thunderblot IGBT® is a new generation of high voltage power IGBT. The device uses non-through-pass technology for excellent durability and ultra-fast switching speeds.
specification
IGBT type: NPT
Voltage-emitter breakdown (Max.) : 1200 V
Current-collector (Ic) (Max.) : 54 A
Current-collector pulse (Icm) : 75 A
Vce(on) (Max.) for different Vge and Ic: 3.7V@15V, 25A
Power - Max: 347 W
Switching power: 930µJ (on), 720µJ (off)
Input type: Standard
Grid charge: 170 nC
Td (On/off) value at 25°C: 14ns/150ns
Test conditions: 800V, 25A, 5 ohms, 15V
Operating temperature: -55°C ~ 150°C (TJ)
Installation type: Through hole
Package/housing: TO-247-3
Supplier Device Package: TO-247 [B]
Basic product number: APT25GT120
