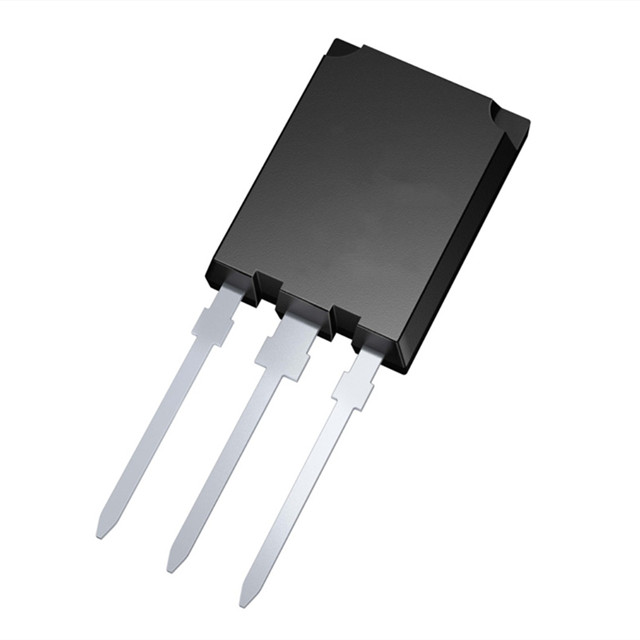

IGQ120N120S7 1200V, 120A TRENCHSTOP™ IGBT7 The S7 is an efficient, short-circuit-resistant, discrete IGBT single-tube device in the TO-247 package that offers low saturation voltage drop (VCEsat) for ultra-low on-off losses in target applications.

specification

Product category: IGBT transistor

Technology: Si

Package/housing: TO-247-3

Installation style: Through Hole

Configuration: Single

Collector-emitter maximum voltage VCEO: 1.2kV

Collector-emitter saturation voltage: 1.65V

Maximum grid/emitter voltage: -20 V, 20 V

Continuous collector current at 25 C: 216 A

Pd- Power dissipation: 1.004 kW

Minimum operating temperature: -40 °C

Maximum operating temperature: + 175°C

Series: TRENCHSTOP IGBT7 S7

Package: Tube

Trademark: Infineon Technologies

Grid-emitter leakage current: 100 nA
