The DSPIC33EP64MC502-I/MM digital signal controllers (DSCs) and PIC24E microcontrollers (MCUs) feature enhanced cores with up to 70 MIPS of performance. Featuring up to 536KB of Flash and 52KB of RAM, as well as greater I/O capacity, these Microchip 16-bit DSCs and MCUs also feature a USB 2.0 OTG interface that provides enhanced motor control, graphics, audio and real-time embedded control. Connectivity to PCs, flash drives and other USB-enabled devices can be achieved. 70 MIPS performance means these devices can support computer interface applications.

Product Attributes

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 70 MIPs

Connectivity: CANbus, I²C, IrDA, LIN, QEI, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT

Number of I/O: 21

Program memory capacity: 64KB (22K x 24)

Program memory type: Flash

RAM Size: 4K x 16

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 6x10b/12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

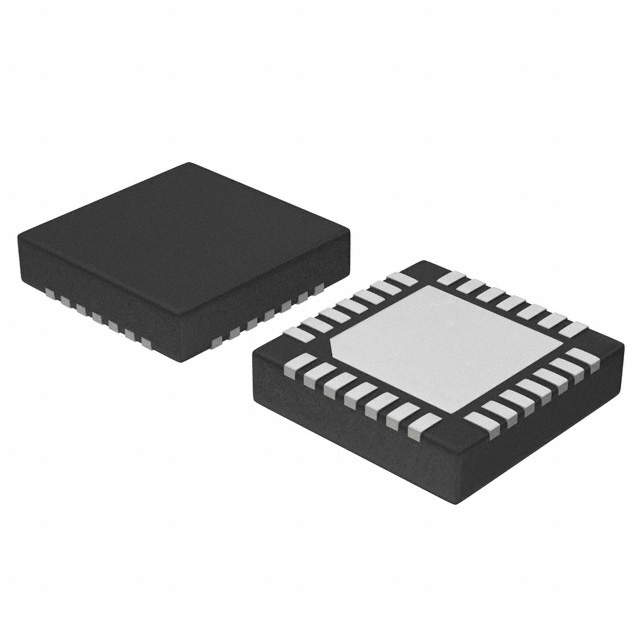

Package/Case: 28-VQFN Exposed Pad

Supplier Device Package: 28-QFN-S (6x6)
