The ATSAMV70N19B-CB ARM-based Flash MCUs are a family of Flash MCUs based on the high-performance 32-bit ARM® Cortex®-M7 processor with floating-point unit (FPU).The devices operate at up to 300 MHz and feature up to 2,048 KB of Flash memory and up to 384 KB of multi-port SRAM.

Features

Core

ARM Cortex-M7 running at 300MHz

16KB instruction cache and 16KB data cache with error correction code (ECC)

Single- and double-precision hardware floating-point unit (FPU)

16-area Memory Protection Unit (MPU)

DSP instructions, Thumb®-2 instruction set

Embedded Trace Module (ETM) with Instruction Trace Stream, including Trace Port Interface Unit (TPIU)

Memory

Up to 2048KB embedded flash memory with unique identifier and user signature for user-defined data

Up to 384KB embedded multi-port SRAM

Tightly coupled memory (TCM) interface with four configurations (disabled, 2x32KB, 2x64KB, 2x128KB)

16KB ROM with embedded boot loader (UART0, USB) and IAP routines

16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR Flash and NAND Flash with on-the-fly programming

16-bit SDRAM controller (SDRAM) with up to 256MB of memory connectivity and on-the-fly programming

Product Attributes

Core Processor: ARM® Cortex®-M7

Core specification: 32-bit single core

Speed: 300MHz

Connectivity: CANbus, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, WDT

Number of I/O : 75

Program memory capacity: 512KB (512K x 8)

Programme memory type: Flash

RAM Size : 256K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 10x12b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

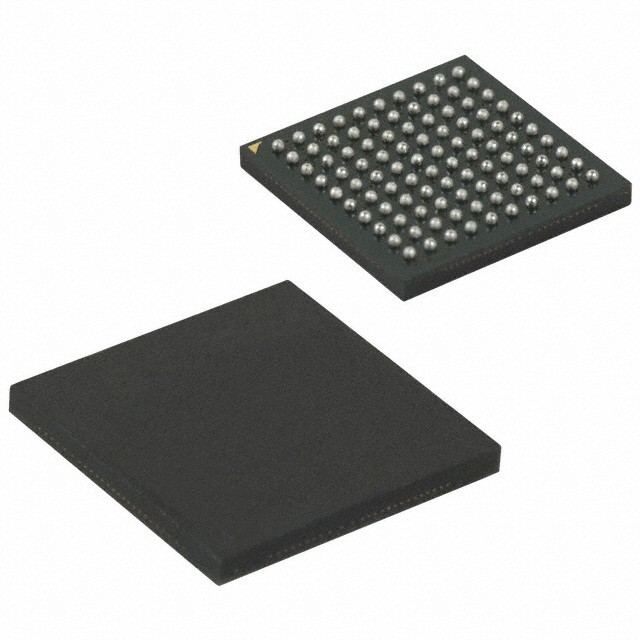

Package/Housing: 100-TFBGA

Supplier Device Package: 100-TFBGA (9x9)
