Service Telephone:86-755-83294757
Trade Name:ATSAME53N19A-AU
Data Manual:ATSAME53N19A-AU.pdf
Brand:Microchip
Particular Year:23+

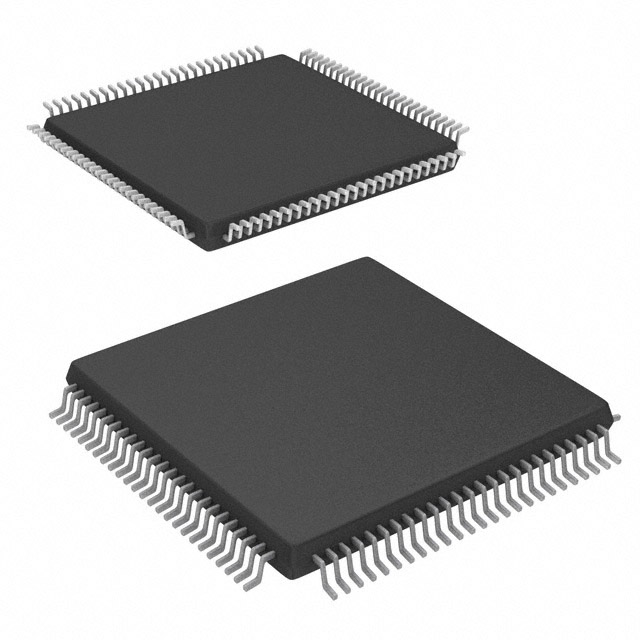

Package:TQFP-100
Delivery Date:New and Original
Stock: 1000pcs
The ATSAME53N19A-AU 32-bit Arm® Cortex®-M4F microcontroller (MCU) features a 32-bit Arm Cortex-M4 processor with a floating-point unit (FPU) running at up to 120MHz, up to 1MB of dual-sided Flash memory with ECC, and up to 256KB of SRAM with ECC. The MCUs feature a variety of connectivity interfaces, robust performance, and robust hardware-level security The devices also include a 10/100 Ethernet MAC and two CAN-FD port options, making them suitable for use in industrial automation, automotive applications, and general-purpose applications requiring wired connectivity.
Features
ARM Cortex-M4F core running at 120MHz with single precision floating point unit (FPU)
Internal memory architecture with user-configurable tightly coupled memory, system memory, memory protection unit and 4KB combined I-cache and D-cache
Quad Serial Peripheral Interface (QSPI) with Execute-in-Place (XIP) support
Up to 2 Secure Digital Host Controllers (SDHC)
10/100 Ethernet MAC with IEEE1588 support (E53/E54)
Dual-channel Bosch CAN-FD 1.0 controller (E51/E54)
Peripheral Touch Controller (PTC) with support for up to 256 capacitive touch channels
Full-speed USB with embedded host/device
Supports 5 low-power modes with leading 65µA/MHz active power performance
Integrated security including symmetric (AES) and asymmetric (ECC) encryption, public key exchange support (PUKCC), TRNG and SHA-based memory integrity checker
Dual 1Msps, 12-bit ADCs, up to 32 channels, with offset and gain error compensation
Dual 1Msps, 12-bit DACs and analogue comparators
Serial communication (SERCOM) port, configurable as UART/USART, ISO 7816, SPI or I2C
48-pin to 128-pin package options
Operating temperature range
Commercial/industrial: -40°C to +85°C
Model
Brand
Package
Quantity
Describe
INFINEON
BGA
3000
TriCore™ TC17xx Microcontroller IC 32-bit Single Core 240MHz 4MB (4M x 8) Flash Memory PG-LFBGA-292-6
TI
VQFN-32
9000
MSP430 CPU16 MSP430G2xx Microcontroller IC 16-bit 16MHz 16KB (16K x 8) Flash 32-VQFN (5x5)
SILICON
QFN-32
3000
8-bit microcontroller - MCU 32kB/4kB RAM, 10-bit ADC, DC-DC, 0.9V, QFN32
Cypress
QFN-40
2000
ARM® Cortex®-M0+ null microcontroller IC 32-bit 24MHz 16KB (16K x 8) flash memory 40-QFN (6x6)
TI
HTQFP-48
5000
C2000 Real-time Microcontroller - Automotive Grade C2000™ 32-bit MCU, HTQFP-48
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
