The DSPIC33CK1024MP708-I/PT digital signal controller (DSC) features high-resolution PWM and CAN Flexible Data Rate (CAN FD) to provide real-time deterministic performance to support high-performance control applications. Featuring a single 100MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals for advanced detection/control, robust common embedded applications, motor control, digital power and high-performance embedded applications. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, run quieter, and extend motor life.

Product Attributes

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 100 MIPs

Connectivity: CANbus, I²C, LINbus, QEI, SPI, Smart Card, UART/USART

Peripherals: Power-down detection/reset, DMA, I²S, motor control PWM, POR, PWM, QEI, WDT

Number of I/O: 69

Programme memory capacity: 1MB (1M x 8)

Program memory type: Flash

RAM Size: 128K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 24x12b SAR; D/A 6x12b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

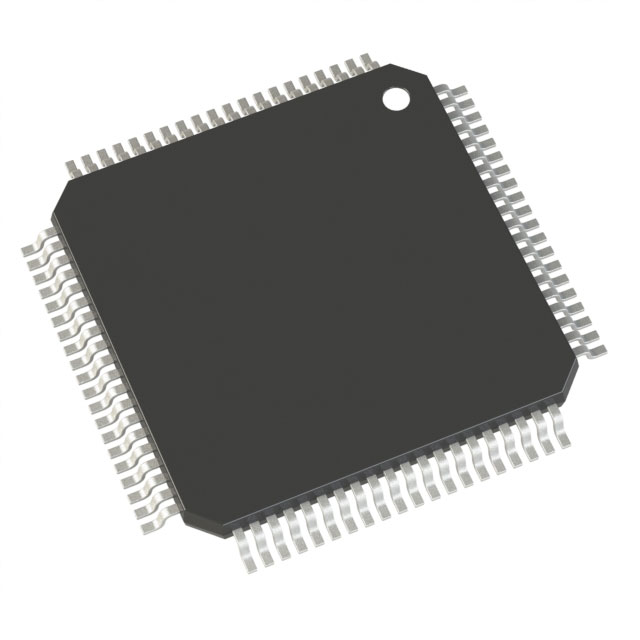

Package/Housing: 80-TQFP

Supplier Device Package: 80-TQFP (12x12)

Applikationer

● Power Factor Correction (PFC)

● Interleaved PFC

● Critical conduction PFC

● Bridgeless PFC

● DC/DC converters

● Buck, Boost, Forward, Flyback and Push-Pull

● Half bridge/full bridge

● Phase shift full bridge

● Resonant converters
