The DRV8910QPWPRQ1 device is a pin-to-pin compatible integrated multi-channel half-bridge driver with 10 half-bridges. The device has a low on-state resistance (RDS(ON)) for improved thermal performance during high current operation. The device can drive brush direct current (BDC) motors or stepper motors independently, sequentially or in parallel mode. The half-bridge is fully controllable to achieve forward, reverse, coasting and braking operation of the motor.

specification

Output Configuration: Half bridge (10)

Application: DC motor, general purpose

Interface: Logic, PWM, SPI

Load type: Inductance, capacitance, resistance

Technology: MOSFET (Metal oxide)

On-resistance (typical) : 750 milliohm LS, 750 milliohm HS

Current - Output/channel: 6A

Current - Peak output: -

Voltage - Power supply: 3V ~ 5.5V

Voltage - load: 3V ~ 5.5V

Operating temperature: -40°C ~ 150°C (TJ)

Features: Charging pump, controlled voltage and swing rate

Fault protection: Overcurrent, overvoltage, UVLO

Mounting type: Surface mount type

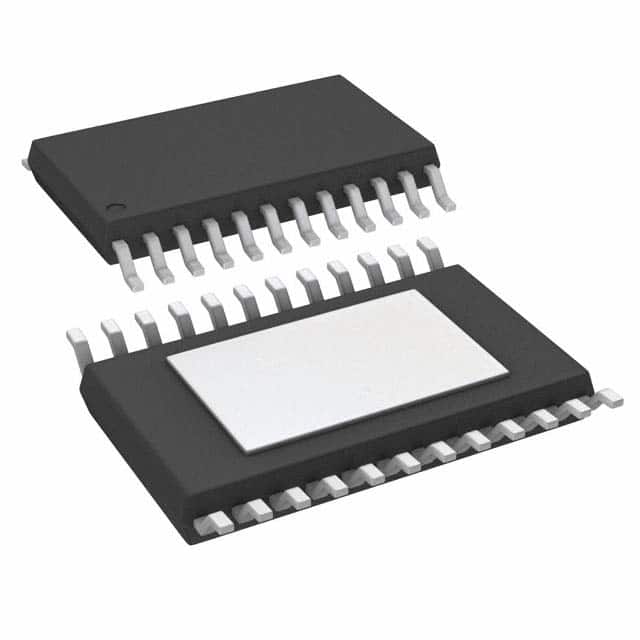

Package/housing: 24-PowerTSSOP (0.173", 4.40mm wide)

Supplier device package: 24-HTSSOP

Basic product number: DRV8910

Application

• HVAC wing DC motor

• Side mirror adjustment and rearview mirror folding

• LED Applications

• Multi-brush DC motor and solenoid valve
