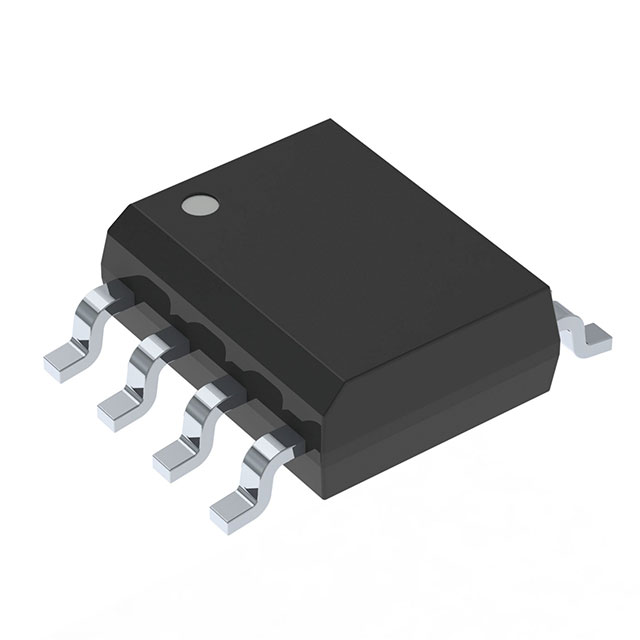

Trade Name:1EDI20I12MFXUMA1
Data Manual:1EDI20I12MFXUMA1.pdf
Brand:INFINEON
Particular Year:23+
Package:8-SOIC
Delivery Date:New and Original
Stock: 1000pcs
The 1EDI20I12MFXUMA1 is a galvanically isolated single-channel gate driver in a DSO-8 narrow-body package that delivers up to 6.2 A of output current and incorporates active Miller clamp circuitry with the same current rating to output up to 6.2 A. Active Miller clamp circuitry is also integrated with the same current rating to prevent parasitic conduction. An active Miller clamp circuit with the same current rating is also integrated to prevent parasitic conduction. The input logic pins operate over a wide input voltage range of 3 V to 15 V, with scaled CMOS threshold levels to support 3.3 V microcontrollers.
Function
● Single-channel isolated gate driver
● Suitable for 600 V/650 V/1200 V IGBTs, MOSFETs and SiC MOSFETs
● Rail-to-rail output up to 6 A typical peak current
● Active Miller clamp
● Galvanically isolated coreless transformer driver
● Wide input voltage operating range
● Suitable for high temperature environments and fast switching applications
● Small, cost-optimised DSO-8 150 mil package with 4 mm creepage distance
● 20 V absolute maximum output supply voltage
Applications
● AC and brushless DC motor drives
● High voltage DC/DC converters and DC/AC inverters
● Induction heating resonant applications
● UPS systems
● Commercial Air Conditioning (CAC)
● Server and Telecom Switching Power Supplies (SMPS)
● Solar power
Model
Brand
Package
Quantity
Describe
Skyworks
SOIC-16
12000
Current-isolated gate driver 2.5 kV 8 V UVLO dual isolated gate driver
TI
SOIC-16
2000
Automotive-grade 5.7 kVrms, 2.5 A/5 A single-channel isolated gate driver with active protection functionality
INFINEON
VDSON-8
2500
250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side
INFINEON
PG-DSO-8
2500
250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side
INFINEON
PG-DSO-8
3000
1200 V, 6.2 A single-channel isolated gate driver with Miller clamp and short circuit clamping
