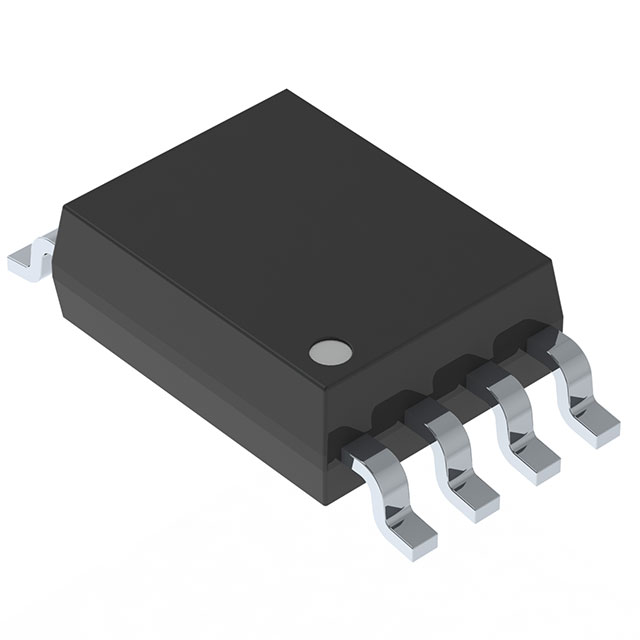

The NCD57090DDWR2G are high current single channel IGBT/MOSFET gate drivers with 5 kVrms internal galvanic isolation, designed for high system efficiency and high reliability in high power applications. These devices accept complementary inputs and, depending on pin configuration, offer options such as active Miller clamp (versions A/D/F), negative supply (version B), and independent high and low level (OUTH and OUTL) driver outputs (versions C/E) to facilitate system design. The drivers accommodate a wide range of input bias voltages and signal levels (3.3 V to 20 V).

Product Attributes

Technology: Capacitively coupled

Number of Channels: 1

Voltage - Isolation: 5000 Vrms

Common mode transient immunity (min): 100 kV/µs (max)

Propagation Delay tpLH / tpHL (max): 90ns, 90ns

Pulse Width Distortion (max): 25ns

Rise / Fall Time (typical): 13ns, 13ns

Current - Output High, Low: 6.5A, 6.5A

Current - Peak Output: 6.5A

Voltage - Output Supply: 0V ~ 32V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Shell: 8-SOIC (0.295", 7.50mm Width)

Supplier Device Package: 8-SOIC

Certification Body: VDE

Applications

● Motor control

● Uninterruptible Power Supplies (UPS)

● Automotive applications

● Industrial power supplies

● Solar inverters
