MCP48CVB24T-E/ML is quad channel 12-bit buffered voltage output Digital-to-Analog Converters (DAC) with volatile or MTP memory and an SPI serial interface.

Product Features

Operating Voltage Range:

2.7V to 5.5V - full specifications

1.8V to 2.7V - reduced device specifications

Nonvolatile Memory (MTP) Size: 32 Locations

1 LSb Integral Nonlinearity (INL) Specification

Power-on/Brown-out Reset (POR/BOR) Protection

Power-Down Modes:

- Disconnects output buffer (high-impedance)

- Selection of Vout pull-down resistors (100 kS2 or 1 kQ)

SPI Interface:

- Write speed: up to 50 MHz

- Read speed: up to 25 MHz

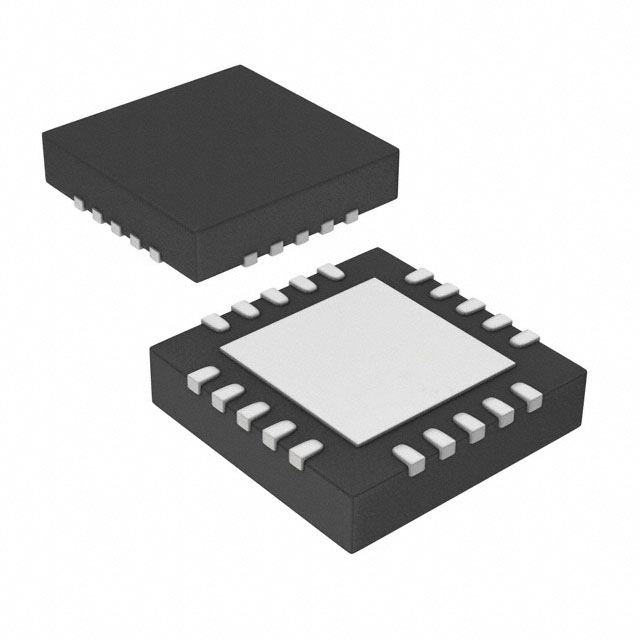

Package Types: 20-lead 4 mm x 4 mm QFN, 20-lead TSSOP

Extended Temperature Range: -40°C to +125°C

Applications

Set Point or Offset Trimming

Sensor Calibration

Low-Power Portable Instrumentation

Data Acquisition Systems

Motor Control
