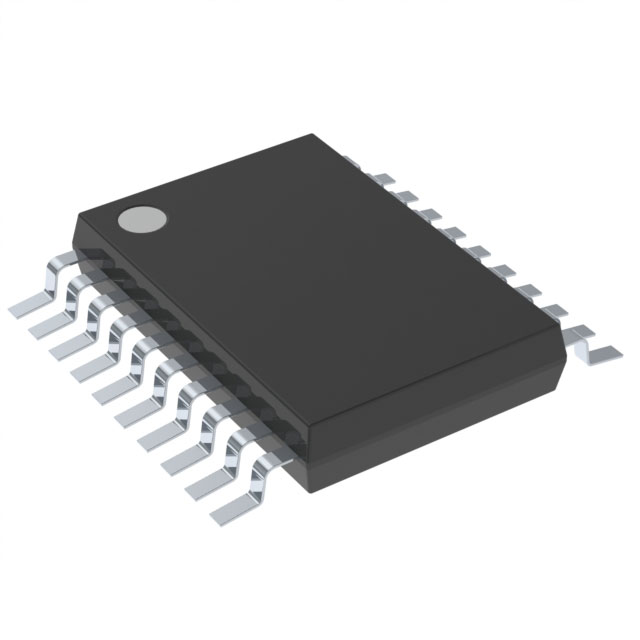

MCP47CMB18-20E/ST is single/dual channel 10 bit buffered voltage output Digital-to-Analog Converters with volatile or MTP memory,and an I2C serial interface.

Features

Nonvolatile Memory (MTP) Size: 32 Locations

1 LSb Integral Nonlinearity (INL) Specification

DAC Voltage Reference Source Options

External VREF pin (buffered or unbuffered)

Internal band gap

Power-on/Brown-out Reset (POR/BOR) Protection

Power-Down Modes

Disconnects output buffer (high-impedance)

Selection of VOUT pull-down resistors

Slave address options: register-defined address with two physical address select pins

Standard (100 kbps), Fast (400 kbps) and High-Speed (up to 3.4 Mbps) modes

Extended Temperature Range: -40°C to +125°C

Applications

Set Point or Offset Trimming

Sensor Calibration

Low-Power Portable Instrumentation

PC Peripherals

Data Acquisition Systems
