The MCP47CVB02T-E/MF are 8-bit buffered voltage output devices. Digital-to-analogue converter (DAC) with volatile or MTP memory, and an I2C serial interface.The MTP memory can be written by the user up to 32 times per specific register. It requires a high level (typically 7.5V) on the HVC pin to successfully program the desired memory location. Non-volatile memory includes power-on output values, device configuration registers, and general-purpose memory.

Product Attributes

Number of bits: 8

Number of digital-to-analogue converters: 2

Build Time: 16µs (standard)

Output Type: Voltage - Buffered

Differential outputs: None

Data interface: I²C

Reference Type: External, Internal

Voltage - Powered, Analogue: 1.8V ~ 5.5V

Voltage - Powered, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±0.1, ±0.1 (max)

Architecture: Current Source

Operating Temperature: -40°C ~ 125°C

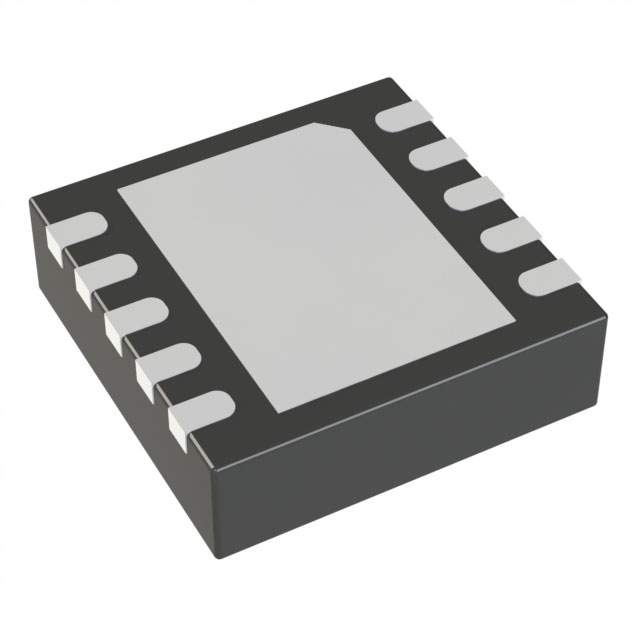

Package/Housing: 10-VFDFN Exposed Pad

Supplier Device Package: 10-DFN (3x3)

Mounting Type: Surface Mount

Application

● Setpoint or bias trimming

● Sensor calibration

● Low-power portable instruments

● PC peripherals

● Data acquisition systems
