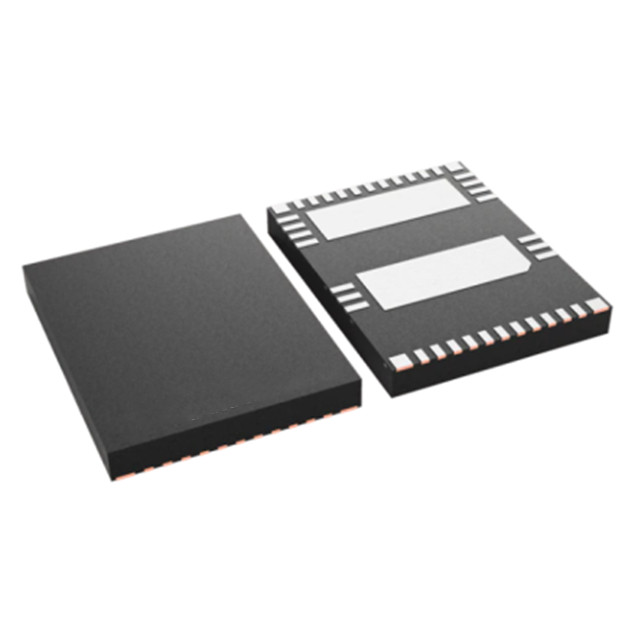

The LMG2610RRGR is a 650V GaN power FET half-bridge for < 75W active clamp flyback (ACF) converters in switched mode power supply applications. By integrating a half-bridge power FETs, gate drivers, bootstrap diodes, and high-side gate drive level converters in a 9mm x 7mm QFN package, the LMG2610 simplifies the design, reduces the number of components, and reduces board space.

specification

Product Category: Door driver

Product: Half bridge driver

Type: Half bridge

Installation style: SMD/SMT

Package/housing: VQFN-40

Number of drivers: 2 drivers

Number of outputs: 2 Output

Output current: 3 A

Supply voltage - Minimum: 7.5V

Power supply voltage - Max: 26 V

Configuration: Non-Inverting

Rise time: 14.9 ns

Descent time: 12.5ns

Minimum operating temperature: -40 °C

Maximum operating temperature: + 125°C

Series: LMG2610

Package: Reel

Encapsulation: Cut Tape

Trademark: Texas Instruments

Development kit: UCC28782EVM-030

Input voltage (Max) : 26 V

Input voltage (min) : 10 V

Maximum shutdown delay: 43 ns

Maximum start delay: 12.5 ns

Output voltage: 19.95V

Product Type: Gate driver

Rds On- drain-source on-resistance: 170 mOhms
