DS560MB410ZASR is a low-power, high-performance four-channel linear equalizer supporting multi-rate, multi-protocol interfaces up to 28 GBd using fourlevel pulse amplitude modulation or up to 32 GBd using non-return-to-zero (NRZ) modulation.

Features

Quad-channel multi-protocol linear equalizer supporting up to 28-GBd (PAM4) and 32-GBd interfaces

Suitable for up to CEI-56G, Ethernet (400 GbE),Fibre Channel (64GFC), InfiniBand™ , and CPRI/eCPRI PCB and copper cable applications

Selectable CTLE boost profiles to compensate either PCB or cable loss

Integrated 2×2 crosspoint with pin or register control for mux, fanout, and signal crossing

Low power consumption: 160 mW / channel

No heat sink required

Linear equalization with CTLE for seamless support of CR/KR link training, auto negotiation, and FEC pass-through

Extends long-reach links by 18-dB+ beyond normal ASIC-to-ASIC capability at 13.28 GHz

Eye expander for PAM-4 eye symmetry enhancement

Low input-to-output latency: 80 ps (typical)

Low additive random jitter

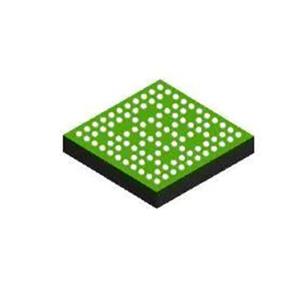

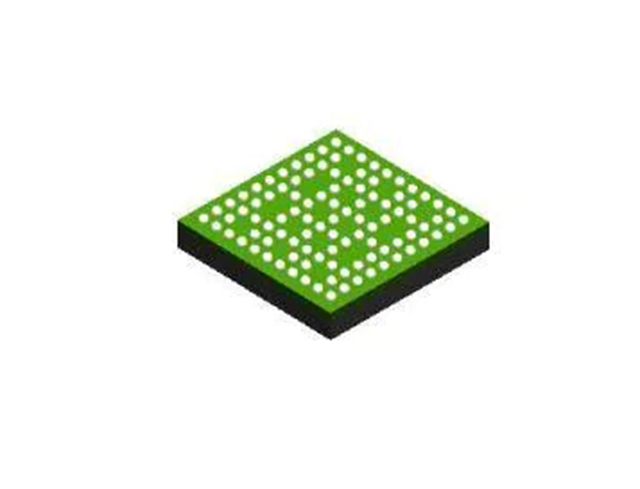

Small 6.00 mm × 6.00 mm BGA package for easy flow-through routing

No reference clock required

Single 2.5-V ± 5% power supply

–40°C to +85°C ambient temperature range

Applications

Backplane and midplane C2C attachment unit interface reach extension

Active copper cables

Mux and de-mux for failover redundancy
