The DS160PR1601ZDGR is a 32-channel (16 channels in each direction) x 16 (16-channel) low-power, high-performance linear repeater or adapter driver designed to support PCIe 4.0, UPI 2.0, and other interfaces up to 16 Gbps. The DS160PR1601ZDGR receiver deploys a continuous-time linear equaliser (CTLE) to provide programmable high-frequency enhancement. The DS160PR1601ZDGR receiver deploys a continuous-time linear equaliser (CTLE) to provide programmable high-frequency enhancement. The equaliser turns on input eye diagrams that are completely closed due to inter-code crosstalk (ISI) caused by interconnecting media such as PCB wiring.

Product Product Attributes

Type: Buffer, Adapter Driver

Application: PCIe

Input: Differential

Output: Differential

Data rate (max): 16Gbps

Number of channels: 32

Latency: 130ps

Signal Conditioning: Input Equalisation, Output De-Emphasis

Capacitance - Input: 1.2 pF

Voltage - Supply: 3V ~ 3.6V

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

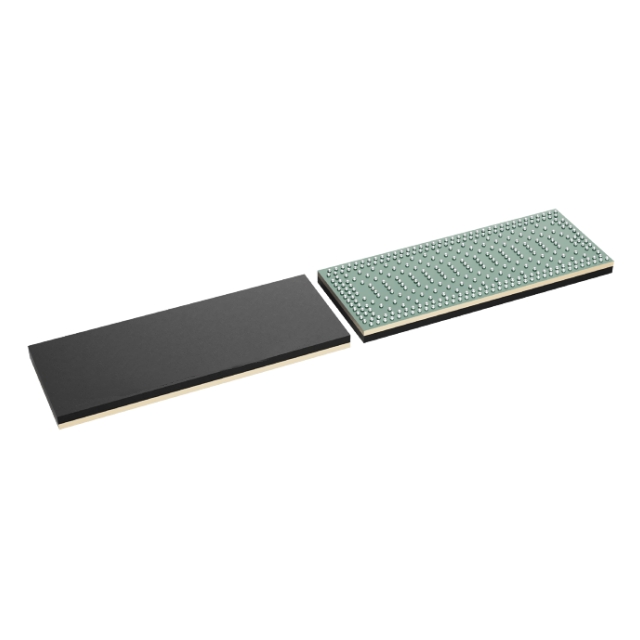

Package/Housing: 354-LFBGA, WLBGA

Supplier Device Package: 354-NFBGA (22.8x8.9)

Applications

● Rack servers, micro servers and tower servers

● High-performance computing

● Hardware accelerators

● Network-attached storage

● Storage Area Network (SAN) and Host Bus Adapter (HBA) cards

● Network interface cards (NICs)

● Desktop computers or motherboards
