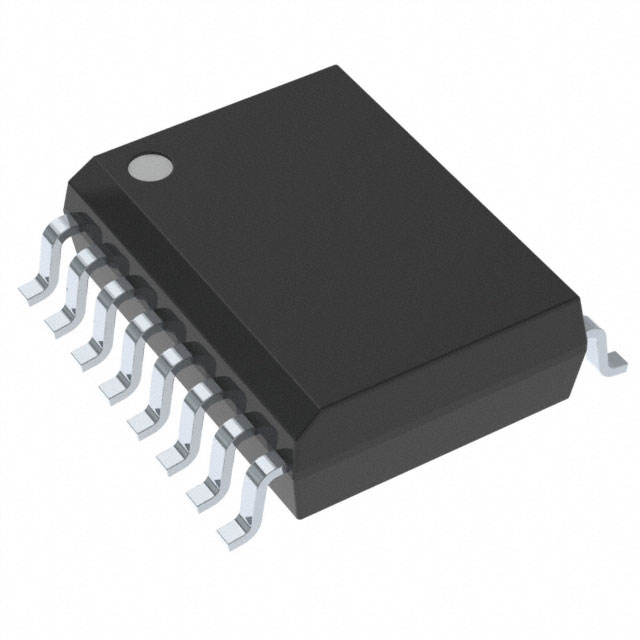

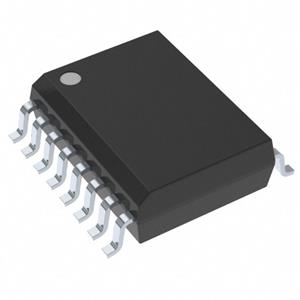

Trade Name:UCC21750QDWQ1
Data Manual:UCC21750QDWQ1.pdf
Brand:TI
Particular Year:23+
Package:SOIC-16
Delivery Date:New and Original
Stock: 2000pcs
The UCC21750QDWQ1 is a galvanically isolated single-channel gate driver designed for SiC MOSFETs and IGBTs with DC operating voltages up to 2121V, featuring advanced protection, excellent dynamic performance and robustness. The UCC21750QDWQ1 features peak pull and sink currents up to ±10A.
The input side is isolated from the output side by SiO2 capacitive isolation technology, supporting operating voltages up to 1.5kVRMS, surge immunity of 12.8kVPK, isolation lifetime of more than 40 years, and providing low inter-device offsets with common-mode noise immunity (CMTI) of more than 150V/ns.
Features
- 5.7kV RMS single-channel isolated gate driver
- Meets AEC-Q100 for automotive applications
- Device Temperature Rating 0: -40°C to +150°C Ambient Operating Temperature Range Ambient Operating Temperature Range
- Device HBM ESD Classification 3A
- Device CDM ESD Classification C6
- Up to 2121Vpk SiC MOSFETs and IGBTs
- 33V Maximum Output Drive Voltage (VDD - VEE)
- ±10A Drive Intensity and Separation Output
- 150V/ns minimum CMTI
- DESAT protection with 200ns fast response time
- 4A internal active Miller clamp
- 400mA soft shutdown in the event of a fault
- Isolated analogue sensors with PWM output
- Temperature sensing with NTC, PTC or thermal diode
- High voltage DC link or phase voltage
- Overcurrent alarm FLT and reset via RST/EN
- Fast enable and disable response to RST/EN
- Suppression of <40ns noise transients and pulses on input pins
- 12V VDD UVLO on RDY (with power normal indication)
- Inputs/outputs with up to 5V overshoot/undershoot transient voltage immunity
- 130 ns (max) propagation delay and 30 ns (max) pulse/interdevice offset
- SOIC-16 DW package with > 8mm creepage distance and clearance
- Operating junction temperature range: -40°C to +150°C
- Safety-related approvals:
- Enhanced insulation according to DIN EN IEC 60747-17 (VDE 0884-17)
- UL 1577 Component Certification Scheme
Applications
- Traction inverters for EVs
- In-vehicle chargers and charging posts
- DC/DC converters for HEVs/EVs
Model
Brand
Package
Quantity
Describe
BROADCOM
16-SOIC
2000
Automotive 2.5A Gate-Drive Optocoupler with Integrated IGBT Desat Overcurrent Sensing
BROADCOM
16-SOIC
2000
Automotive 2.5A MOSFET Gate Drive Optocoupler with Integrated Desat Over Current Sensing
BROADCOM
16-SOIC
2000
Automotive 2.5A Gate Drive Optocoupler with Integrated Flyback Controller
ST
24-SOIC
1000
Gate Driver Channel 24-SO Automotive Galvanically Isolated Single Gate Driver
