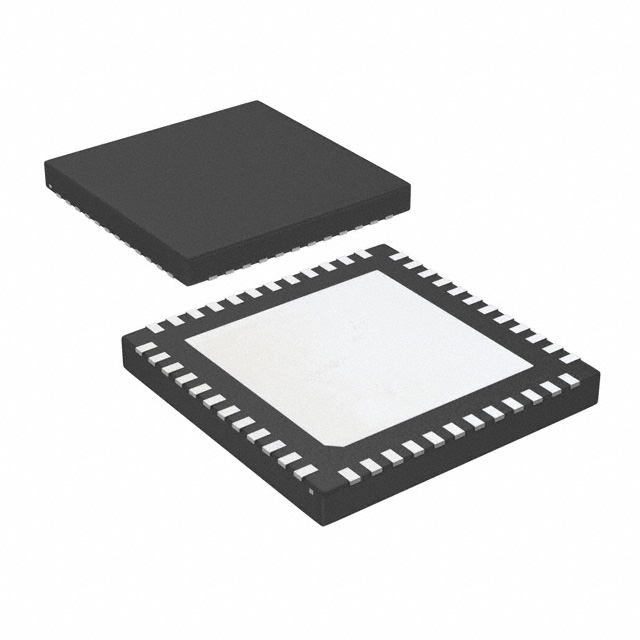

This DS90UA102TRHSJQ1 deserialiser, used in conjunction with the DS90UA101-Q1 serialiser, provides a solution for digital audio distribution in multichannel audio systems. It receives data on a single shielded twisted pair or coaxial cable with a high-speed serialised interface with an embedded clock. The serial bus system is configured to support high-speed forward data transmission and low-speed bi-directional control channels on the link. The combined use of digital audio, general-purpose IO, and control signals on a single differential pair reduces interconnect size and weight, while also reducing design issues related to skew and system latency.

Features

Digital Audio Deserialiser

Flexible digital audio outputs supporting I2S (stereo) and time division multiplexing (TMD) (multichannel) formats

Coaxial or single differential pair interconnections

High-speed serial input interface

Very low latency (< 15µs)

Bi-directional control interface channels with I2C-compatible serial control buses

Supports up to 8 stereo I2S or TDM audio outputs

Supports audio system clocks from 10MHz to 50MHz

Single 1.8V power supply

1.8V or 3.3V I/O connectors

4/4 dedicated general-purpose inputs/outputs

Up to 15m of AC-coupled shielded twisted pair (STP) or coaxial cable

DC equalisation & scrambling data with embedded clock

Adaptive cable equalisation

Built-in self-test (BIST) mode and LOCK status pins for full-speed links

Automotive grade product: AEC-Q100 Level 2 compliant

Temperature range: -40°C to 105°C

Compliant with ISO 10605 and IEC 61000-4-2 Electrostatic Discharge (ESD) standards

Applications

Automotive infotainment systems

Active noise cancellation systems

Distributed multi-channel audio systems
