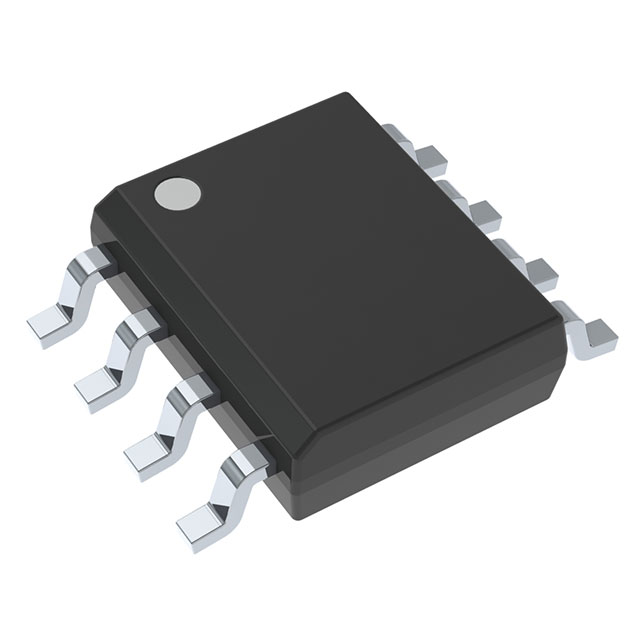

The TMCS1108A2UQDRQ1 is a galvanically isolated Hall effect current sensor capable of measuring DC or AC current with high accuracy, excellent linearity and temperature stability. The low-drift, temperature-compensated signal chain enables a full-scale error of <3% over the temperature range of the device.

The TMCS1108A2UQDRQ1 consumes a maximum supply current of 6mA, and all sensitivity options are rated for operation over the -40°C to +125°C temperature range.

Features

- Complies with AEC-Q100 for automotive applications

- Temperature class 1: - 40 °C to 125 °C, T A

- Provides functional safety

- Documentation to aid in the design of functionally safe systems

- Overall error: ±1% typical, ±3% maximum, -40°C to 125°C

- Sensitivity error: ±0.9 per cent

- Offset voltage error: 40mA

- Temperature drift 0.2mA/°C

- Linearity error: 0.5 per cent

- Sensitivity: 100mV/A

- Zero-drift internal reference

- Bidirectional and unidirectional current sensing

- Operating supply voltage range: 3V to 5.5V

- Signal bandwidth: 80kHz

- Robust 100V galvanic isolation

Applications

- Motor and load control

- Inverter and H-bridge current measurement

- Power factor correction

- Overcurrent protection

- DC and AC power monitoring
