BGT24AT2E6433XUMA1 is a low phase noise 24 GHz ISM band multi-function signal source, manufactured by single silicon germanium semiconductor technology. It can accommodate a 24 GHz fundamental voltage controlled oscillator and a frequency divider with a frequency divider ratio of 1024. The divider output is differential.

Three independent RF outputs produce a typical output power of +10 dBm, which can be adjusted with SPI programmable 6-bit Dacs. Use a dedicated control input or 64-bit SPI to provide fast pulses and phase reversals of the transmitted signal. LO output can be configured automatically using dedicated logic.

Features:

24 GHz signal source with 2 transmitter outputs and 1 local oscillator output

• External/internal inverting and RF pulse capability

• 6-bit resolution programmable gain amplifier (PGA)

• Fully integrated low phase noise VCO

• Frequency divider with 23.5MHz output

• On-chip RF level and temperature sensor

• Multiplex output of analog sensor signals

• Single-ended RF terminals

• Single supply voltage: 3.3V (typical)

• Low power consumption: 775 MW (typical)

200 GHz bipolar SiGe: C technology B7HF200

• Full ESD protection device

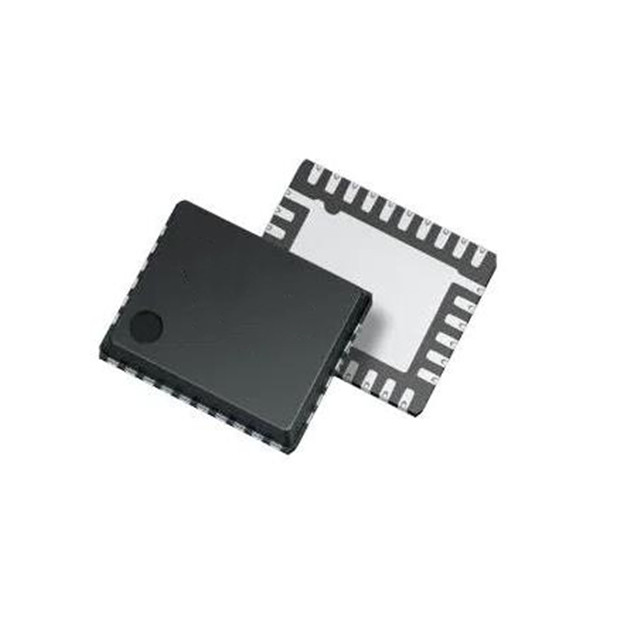

•VQFN-32-9 pin-free plastic package, including lead end inspection (LTI)
