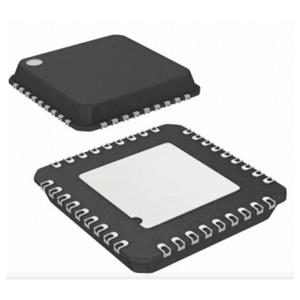

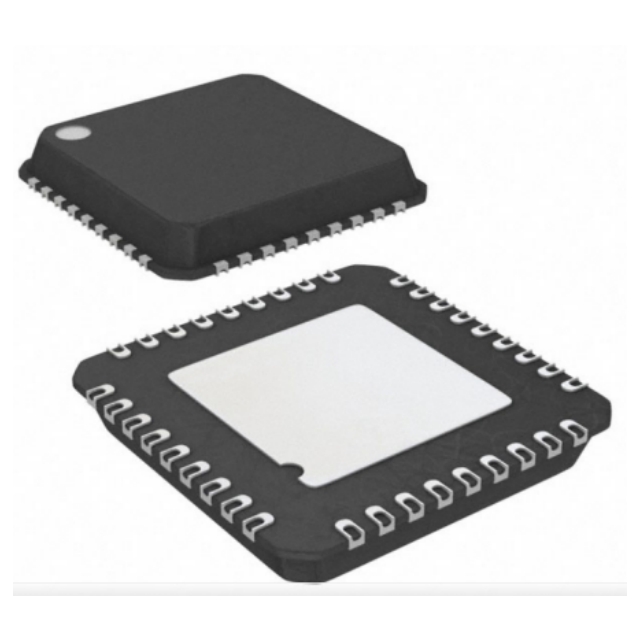

The DP83TC811RWRNDRQ1 device is an automotive PHYTER™ Ethernet physical layer transceiver that complies with the IEEE 802.3bw standard. It provides all the physical layer functionality required to transmit and receive data over unshielded single twisted pair cable. The device offers xMII flexibility and supports standard MII, RMII and RGMII MAC interfaces. The device includes a diagnostic toolkit and offers a wide range of real-time monitoring tools, debugging tools and test modes. Included in the toolkit is the first integrated electrostatic discharge (ESD) monitoring tool. It calculates ESD events on the xMII and MDI and provides real-time monitoring through the use of programmable interrupts.

Functional Features

● IEEE 802.3bw compliant

● OPEN Alliance certified

● Compatible with BroadR-Reach and

● 100BASE-T1 physical layer

● Certified to AEC-Q100 for automotive applications:

● Device temperature class 1: -40°C to +125°C.

● Device HBM ESD Class 3A

● Device CDM ESD Class C5 for

● All pins except pin 5

● Device CDM ESD Classification Level C3 (Pin 5)

● Device IEC61000-4-2 ESD Classification Levels

● 4: ±8-kV contact discharge for pins 12 and 13

Applications

● Backbone networks

● Gateways and body control

● Telematics
