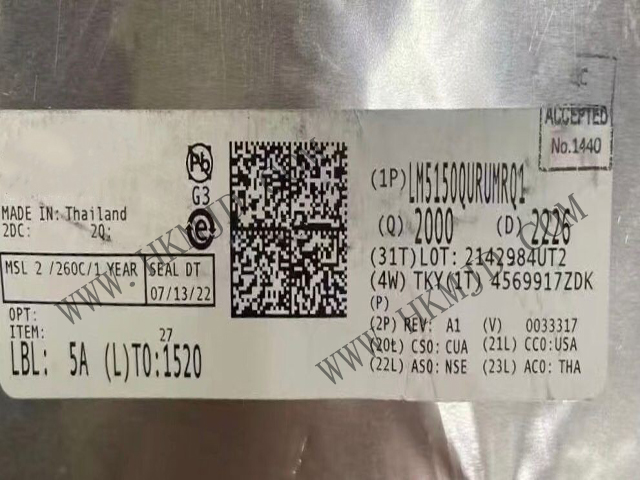

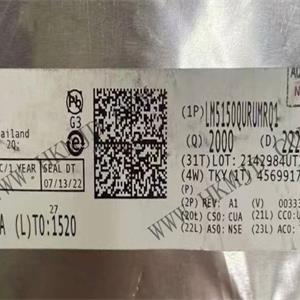

The LM5150QURUMRQ1 device is a wide input range auto boost controller. The device is suitable for use as a pre-boost converter to maintain the output voltage of an automotive battery during vehicle startup or to maintain the output voltage of a backup battery during a lack of an automotive battery.

Features

- Compliant with AEC-Q100:

- Device Temperature Class 1: -40°C to +125°C Ambient Operating Temperature Range

- Device HBM ESD Classification 2

- Device CDM ESD Classification Level C4B

- Providing Functional Safety

- Documentation to aid in the design of functionally safe systems

- Wide input voltage range of 1.5V to 42V at output voltages ≥ 5V (65V absolute maximum)

- Low shutdown current (IQ ≤ 5µA)

- Low standby current (IQ ≤ 15µA)

- Four programmable output voltage options and two selectable configurations

- 6.8V, 7.5V, 8.5V or 10.5V

- Start-stop or emergency call configurations

- Adjustable switching frequency range: 220 kHz to 2.3 MHz

- Automatic wake-up and standby mode switching

- Optional clock synchronization

- Boost status indicator

- 1.5A peak MOSFET gate driver

- Adjustable cycle-by-cycle current limit

- Thermal shutdown protection

- 16-pin WQFN with wetted side and non-wetted side options

- Use the LM5150-Q1 and create a customized design with WEBENCH® Power Designer

Applications

- Automotive start-stop systems

- Automotive emergency call systems

- Battery-powered boost converters
