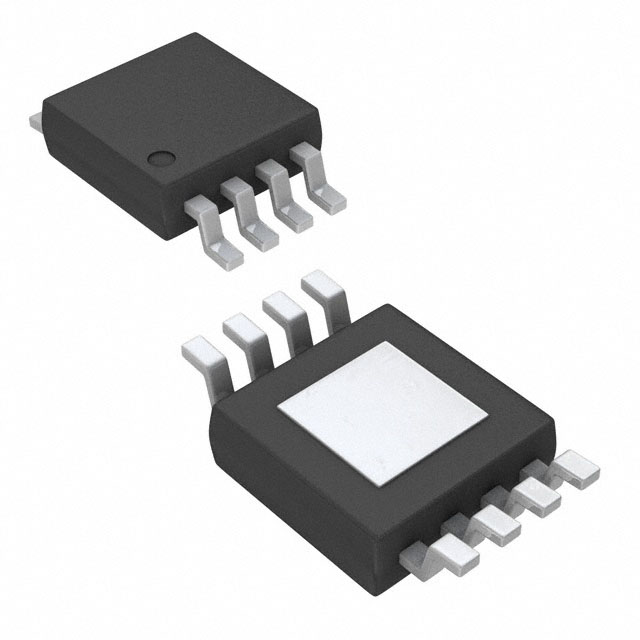

The LM25085QMYX is a high efficiency PFET switching regulator controller that can be used to quickly and easily develop a small, efficient buck regulator for a wide range of applications. This high voltage controller contains a PFET gate driver and a high voltage bias regulator which operates over a wide 4.5V to 42V input range. The constant on-time regulation principle requires no loop compensation, simplifies circuit implementation, and results in ultra-fast load transient response. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The PFET architecture allows 100% duty cycle operation for a low dropout voltage. Either the RDS(ON) of the PFET or an external sense resistor can be used to sense current for over-current detection.

Features

LM25085-Q1 is an Automotive Grade product that is

AEC-Q100 Grade 1 Qualified (–40°C to 125°C Operating Junction Temperature)

Wide 4.5V to 42V Input Voltage Range

Adjustable Current Limit Using RDS(ON) or a

Current Sense Resistor

Programmable Switching Frequency to 1MHz

No Loop Compensation Required

Ultra-Fast Transient Response

Nearly Constant Operating Frequency with Line and

Load Variations

Adjustable Output Voltage from 1.25V

Precision ±2% Feedback Reference

Capable of 100% Duty Cycle Operation

Internal Soft-Start Timer

Integrated High Voltage Bias Regulator

Thermal Shutdown

Applications

Automotive Infotainment

Battery/Super Capacitor Chargers

LED Drivers
