Service Telephone:86-755-83294757

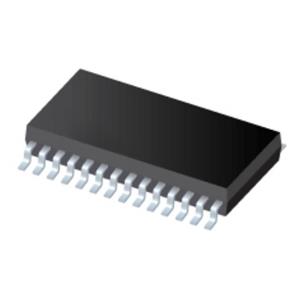

Trade Name:DRV8245HQPWPRQ1
Data Manual:DRV8245HQPWPRQ1.pdf
Brand:TI
Particular Year:23+
Package:28-HTSSOP
Delivery Date:New and Original
Stock: 1000pcs
The DRV8245HQPWPRQ1 is a fully integrated H-bridge driver for a variety of automotive applications. The device can be configured as a single full-bridge driver, or two independent half-bridge drivers. This monolithic system of power packaged devices designed using the BiCMOS high power process technology node provides excellent power handling and thermal performance in a compact, easy to layout package that offers EMI control, accurate current detection and diagnostics for high robustness. The series offers the same pin functionality and scalable RON (current capability) to support different loads.
Product Attributes
Motor Type - Stepper: Bipolar, Unipolar
Motor Type - AC, DC: Brushed DC
Features: Driver - Fully Integrated, Control and Power Stage
Output Configuration: Half Bridge (2)
Interface: PWM, SPI
Technology: Power MOSFET
Current - Output: 32A
Voltage - Supply: 4.5V ~ 5.5V
Voltage - Load: 4.5V ~ 35V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package/Shell: 28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package: 28-HTSSOP
Applications
• Automotive brushed DC motors, solenoids
• Door Modules, Wiper Modules, Luggage and Seat Modules
• Body Control Modules (BCM)
• Electronic gear shifters
• Steering systems
• Gas engine systems
• On-board charger
