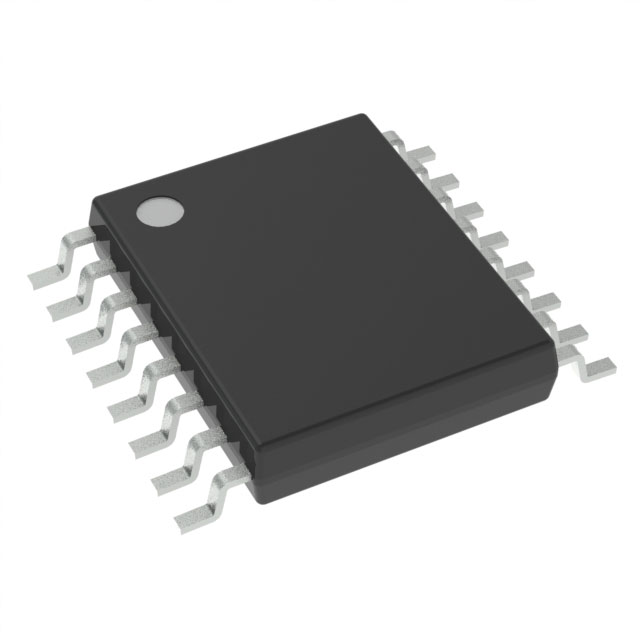

The DRV8874QPWPRQ1 is an integrated motor driver with an N-channel H-bridge, charge pump, current sense and proportional outputs, current regulation and protection circuitry. The charge pump improves efficiency by supporting an N-channel MOSFET half bridge and 100% duty cycle drive. The device family is available in pin-to-pin RDS(on) models to support different loads with minimal design changes, and an internal current mirror architecture on the IPROPI pin enables current sensing and regulation.

Functionality

• AEC-Q100 certified for automotive applications:

• Temperature Class 1: -40°C to +125°C, TA

• Supports Functional Safety

• Documentation is available to assist with functional safety

Features

• N-Channel H-Bridge Motor Driver

• Drives one bi-directional brushed DC motor

• Two unidirectional brushed DC motors

• Other resistive and inductive loads

• Operating voltage range of 4.5 V to 37 V

• Pin-to-pin RDS (conduction) variants

• High output current capability

• Integrated current sense and regulation

Applications

• Brushed DC motors

• Servo motors and actuators

• On-board charger (OBC) inlet lockout

• Alarms and piezoelectric devices

• Side mirror tilt and fold
