Service Telephone:86-755-83294757
Trade Name:DRV8873SPWPRQ1
Data Manual:DRV8873SPWPRQ1.pdf
Brand:TI
Particular Year:23+

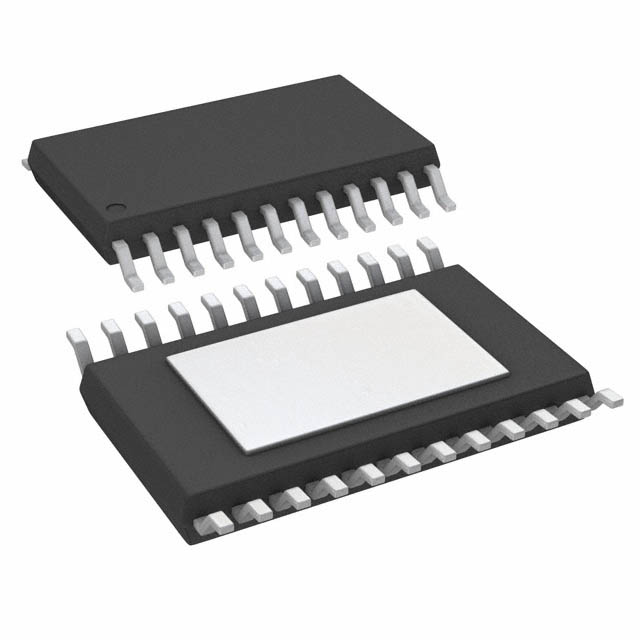

Package:HTSSOP-24
Delivery Date:New and Original
Stock: 8000pcs
The DRV8873SPWPRQ1 device is an integrated driver IC for driving brushed DC motors in automotive applications. two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs capable of bi-directionally driving the motor at peak currents of up to 10 A. The device is powered from a single supply and supports a wide input supply voltage range of 4.5 V to 38 V. The device can be easily connected to the controller circuit via the PH/EN or PWM interface.
The device can be easily connected to the controller circuitry via the PH/EN or PWM interface. Alternatively, independent half-bridge control can be used to drive two solenoid loads.
Features
- Compliant with AEC-Q100 for automotive applications
- Device Temperature Class 1: -40°C to +125°C, TA
- N-Channel H-Bridge Motor Drivers
- Drives one bi-directional brushed DC motor
- Two unidirectional brush DC motors
- Solenoid or other resistive and inductive loads
- 4.5V to 38V operating voltage range
- 10A peak current drive capability
- Low HS + LS RDS(ON)
- 150mΩ at TJ= 25°C and 13.5V
- 250mΩ at TJ= 150°C and 13.5V
- Integrated Current Sense
- Proportional Current Output (IPROPI)
- Configurable Control Interface
- PH/EN
- PWM (IN1/IN2)
- Independent half-bridge control
- Supports 1.8V, 3.3V, 5V logic inputs
- SPI or hardware interface options
- Small Package and Form Factor
- 24-pin HTSSOP PowerPAD™ IC package
- Protection Features
- VM Undervoltage Lockout (UVLO)
- Charge Pump Undervoltage (CPUV)
- Overcurrent protection (OCP)
- Output short-circuit to battery and ground short-circuit protection
- Open Load Detection
- Thermal Shutdown (TSD)
- Fault condition output (nFAULT/SPI)
- Spread Spectrum Clock for Low EMI
- Functionally Safe
- Documentation to aid in the design of functionally safe systems
Applications
- Electronic throttle control
- Exhaust gas recirculation
- Side mirror tilt
- Electronic gearshift
- Air flow steering valve control
